LMG3100R017: Is the thermal resistance acquired with or without top side cooling?

Kento Adachi

Part Number: LMG3100R017

Tool/software:

Hello experts,

Is the Junction-to-ambient thermal resistance of LMG3100R017 in the datasheet acquired with or without top side cooling? In other word, heat sink is attached to its top side metal?

Thanks,

Kento

over 1 year ago

+1 John Gomez over 1 year ago

TI__Expert 4935 points

Hi Kento,

The thermal resistance is obtained without any heatsink on top.

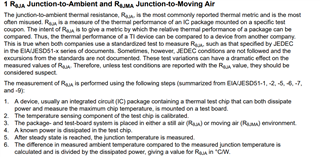

This value is estimated according to the procedure outlined in Section 1 of this application note:

Thanks,

John

0 Kento Adachi over 1 year ago in reply to John Gomez

TI__Expert 4415 points

OK. I understood the value is JEDEC compliant. Thanks!
