HD3SS3220: HD3SS3220 schematics review

Kevin Huang8
Genius 4636 points
Part Number: HD3SS3220

Tool/software:

Hi Team,

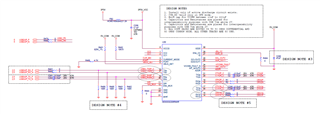

Please help schematics review, thanks!



  • 0
    TI__Mastermind 30500 points

    Hi Kevin,

    Can you elaborate on the application for this design? It looks similar to our HD3SS3220 UFP EVM, but are you operating between a USB-C port and type-A port, or are you installing this part on the sink device? (Only type-C port exposed)

    Can you show how the MUX connects to your type-C connector? I don't see this in the schematic.

    You seem to have 0.33uF capacitors on your TX lines. You need to change these to 0.22uF to fit the USB spec for TX capacitance:

    Best,

    Shane

  • 0 in reply to Shane Hauser
    TI__Mastermind 30500 points

    Hi Kevin,

    Were you able to look at my questions from earlier?

    I'll mark this as resolved due to inactivity. You can respond here with any follow up questions and I will continue to reply.
