BQ40Z80EVM-020: bq40z80 EVM board testing doubts

Hi Manas,

OverAgent712 said:

Using the bq40z80 evm board, can charge and discharge the battery. I do not have any issues with it. I need to find the current flowing across the SRP and SRN terminals using bqstudio, how to achieve this?

The current flowing across the SRP/SRN pins should be reflected by the 0x0A Current() register in bqStudio.

OverAgent712 said:

And I need to control the charging current how to achieve this using bqstudio?

I believe Section 5.1 of the bq40z80 TRM would be a good resource here. This section will describe which parameters need to be changed and how the Advanced Charge Algorithm of the gauge works.

https://www.ti.com/lit/ug/sluubt5a/sluubt5a.pdf

OverAgent712 said:

I need the charging current not to exceed 4 A for example. I can change the protections value in the data memory of the bqstudio. How to test it?

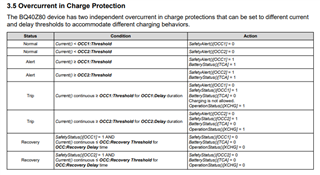

I believe the Overcurrent in Charge protection would be best here. To test this, please apply a current greater than the threshold while the gauge is in CHG mode and ensure that the actions in the Trip section below take place.

Regards,

Anthony

Hello Anthony,
I have changed the values in the bqstudio and applied a current of 5.8 A, which is greater than the threshold but I could not see any actions which was happening, where can that be seen can I get the information in detail?

Hi Manas,

Is the 5.8A being applied for enough time to meet the OCC Delay? If you send the .gg file in use we can confirm the settings.

Regards,

Anthony

Hi Anthony,

Had not looked into that, will check and respond.

Hi Anthony,
Yes, the OCC worked. And is there a possibility that it will continue charging below the mentioned limit and not above it?

Hello,

Since the OCC enables the [XCHG] bit, this will disable the CHG FET until the protection has been cleared, so this should stop the cell from being charged any further.

Regards,

Anthony
