TLC59116: Does RESET pin need external pullup?

Tsuyoshi Nogi

Part Number: TLC59116

Tool/software:

Hi team,

I want to confirm about RESET pin connection.

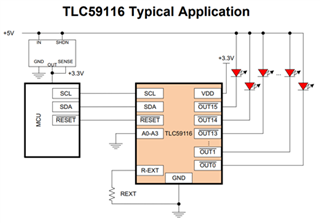

seeing following figure, there is no need of external pullup, but seeing datasheet 9.3.4, it says RESET pin need external pullup.

The figure is rough example?

Thanks and regards,

Tsuyoshi

0 Gracie Guo over 1 year ago

Hi Tsuyoshi,

Our expert is out of office today and will reply to you later.

BR, gracie

+1 Jared Zhou over 1 year ago

Hi Tsuyoshi,

Yes, the REST should be pull high.

Here is the example to be controlled by MCU GPIO.

BR, Jared

0 Tsuyoshi Nogi over 1 year ago in reply to Jared Zhou

Hi Jared,

Thank you for your comment.

If the customer connect RESET pin to MCU GPIO, they shouldn't pull-up it?

Thanks and regards,

Tsuyoshi

0 Jared Zhou over 1 year ago in reply to Tsuyoshi Nogi

Hi Tsuyoshi,

If customers connect the RESET pin to MCU GPIO, please pull up this pin if they need to communicate with this device.

BR, Jared

0 Tsuyoshi Nogi over 1 year ago in reply to Jared Zhou

Hi Jared,

Thank you for your advices!!!

Tsuyoshi
