TPS25750: Connection to controller via USB

Andreas Eder

Part Number: TPS25750
Other Parts Discussed in Thread: USBCPD-APPLICATION-CUSTOMIZATION-TOOL, , , TPS25751

Tool/software:

I want to flash the firmware via USBCPD-APPLICATION-CUSTOMIZATION-TOOL and wanted to know which connection to I need? Can I use the usb connection to the TPS25750 or do I have to use a USB to I2C converter?

over 1 year ago

0 Andreas Eder over 1 year ago

Prodigy 90 points

What would be a compatible usb to I2C cable?

0 Aya Khedr over 1 year ago in reply to Andreas Eder

TI__Mastermind 30372 points

Hi Andreas,

Thank you for reaching out!

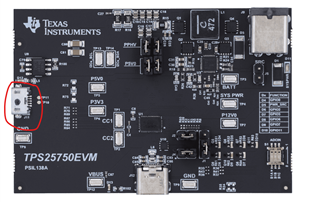

Are you currently using the TPS25750EVM or a custom board? There is a micro-B connector on the EVM that would be connected to the PC via a micro-B to Type-A cable in order for the TIVA to communicate with the GUI tool.

Also I do want to highlight our follow-on device, the TPS25751, recommended for all new designs. Please see the following FAQ.

Best Regards,

Aya Khedr

0 Andreas Eder over 1 year ago in reply to Aya Khedr

Prodigy 90 points

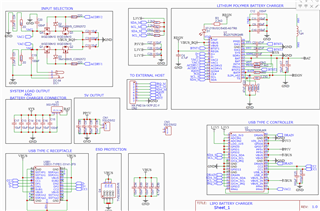

we have a custom design without any usb to i2c converter and I think I have to use a usb to i2c converter like this one (https://at.rs-online.com/web/p/entwicklungstools-kommunikation-und-drahtlos/7570054 ). If I connect this converter to the dedicated pins SCL, SDA, GND I can also program it with the gui? Thanks

0 Aya Khedr over 1 year ago in reply to Andreas Eder

TI__Mastermind 30372 points

Hi Andreas,

The Application Customization Tool is used in conjunction with our EVMs. The FTDI breakout module linked will not work with the GUI tool.

I suggest using the GUI tool to generate the full flash binary image, and then use a different method to flash the EEPROM. We use the TotalPhase Aardvark for our internal development.

Best Regards,

Aya Khedr

0 Andreas Eder over 1 year ago in reply to Aya Khedr

Prodigy 90 points

Thanks a lot. So if I add the I2C EEPROM it would be possible to flash a predefined firmware into the eeprom which will be loaded on startup of the TPS25750.
What is the behaviour if I don't use the EEPROM and plug in the usb-c source to the TPS25750. Does it begin to charge or do we have to communicate via I2C with it? Thanks

0 Aya Khedr over 1 year ago in reply to Andreas Eder

TI__Mastermind 30372 points

Hi Andreas,

There are two ways to load the firmware or patch bundle onto the TPS25750/1 (See table below)

For more information on how to load the patch via MCU, see the flow chart in section 5 of the Technical Reference Manual.

Best Regards,

Aya Khedr
