UCD3138CC64EVM-030: UCD3138CC64EVM-030 Gerver Data or J3/J4 pitch

koumei okahara

Part Number: UCD3138CC64EVM-030

Tool/software:

Hello

Is it possible to receive the Gerber data for UCD3138CC64EVM-030?

Or can you tell me the mounting pitch of J3 and J4 of UCD3138CC64EVM-030?

When designing the base board on which UCD3138CC64EVM-030 will be mounted, the exact positions of J3 and J4 are required.

0 Ning Tan over 1 year ago

you can check the datasheet of the part number

0 koumei okahara over 1 year ago in reply to Ning Tan

Hello

Thank you for your reply.

My explanation was not good. What I'm looking for is the distance between J3 and J4

0 Ning Tan over 1 year ago in reply to koumei okahara

We will check and get back to you by tomorrow.

0 Jonathan Wong over 1 year ago in reply to Ning Tan

Hello Koumei,

The distance between the two I/O connectors J3 and J4 is 2.98mm or 117.32mils.

Regards,

Jonathan Wong

0 koumei okahara over 1 year ago in reply to Jonathan Wong

Hello

Thank you for your reply. Could you please tell me the distance between the pin pads, not the distance on the connector's outer surface?

It's between J4-1,2pin and J3-39,40pin.

0 Jonathan Wong over 1 year ago in reply to koumei okahara

Hello Koumei,

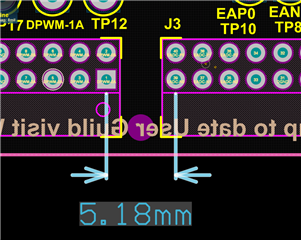

The distance between the first two pin pads (DPWM-0A and EADC-N0) is 5.18mm or 203.94mils.

Regards,

Jonathan Wong
