BQ27Z746: Confusion about GPO being configurable as open drain

John

Part Number: BQ27Z746

Tool/software:

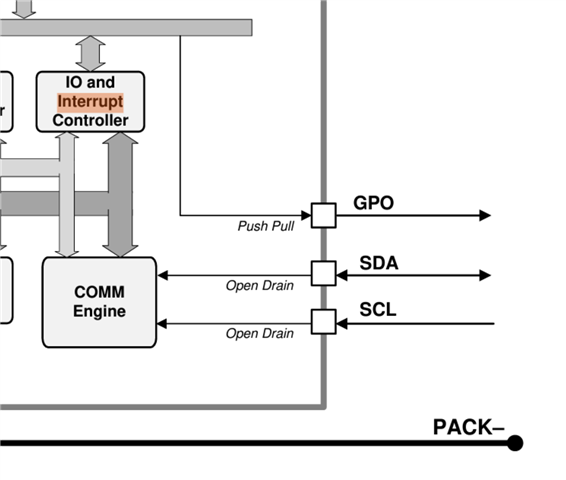

Hello, block diagrams for the BQ27Z746 datasheet indicate that GPO is a push-pull output. However, the technical reference manual says this is configurable as an open drain output. Can somebody please clarify if this signal can be open drain or not?

over 1 year ago

0 Jonny over 1 year ago

TI__Mastermind 25011 points

Hello,

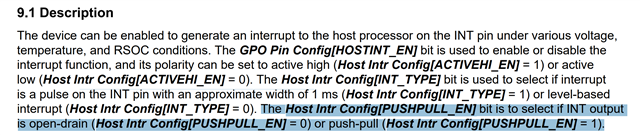

The GPO is a push pull pin, please refer to the following image in the datasheet.

Regards,

Robert.

0 John over 1 year ago in reply to Jonny

Prodigy 40 points

This doesn't fully answer my question. I understand it CAN be push-pull, which would explain why the datasheet specifies operaiton in the push-pull configuration. The TRM states it can also be configured as open drain though. Is the TRM incorrect?

+1 Jonny over 1 year ago in reply to John

TI__Mastermind 25011 points

Hello John,

The TRM is correct here, you can configure this for push pull or open drain depending on what you have the PUSHPULL_EN bit set to.

Regards,

Robert.

0 John over 1 year ago in reply to Jonny

Prodigy 40 points

Ok thank you for confirming.
