TPS923652: TPS923652DMTR

Nitin Gond

Prodigy 55 points

Part Number: TPS923652
Other Parts Discussed in Thread: TPS922052, TPS922053,

Tool/software:

Hi team,

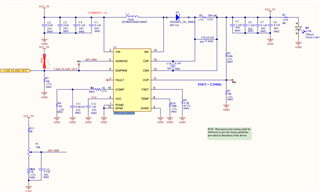

We are using part number of TPS923652DMTR for the buck operation. attached circuit is below, Kindly verify.

The input we are giving 5V and need to generate 3.15V voltage to drive a single led of forward voltage 3.15V.

Boost operations happening correctly with 5V input we are getting 21.36V.

11 months ago

0 Jared Zhou 11 months ago

TI__Mastermind 20515 points

Hi Nitin,

Our expert is OoO and he will reply to you once he is back to office, thanks for your patience.

BR, Jared

0 Steven Li 11 months ago

TI__Mastermind 23150 points

Hi Nitin,

For Vin = 5V, V_LED = 3.15V, I_LED = 1A application condition, I would recommend you use a Buck LED driver to do this, like TPS922052 / TPS922053.

You cannot use TPS923652 in Boost configuration (as shown in your schematic) to do this. You can use TPS923652 in Buck-Boost configuration to do this (You can refer to Section 9.2.2 from the datasheet.). However, I would still recommend you us a Buck LED driver here as it is a better fit.

Best Regards,

Steven

0 Nitin Gond 11 months ago in reply to Steven Li

Prodigy 55 points

Thanks, for the feedback comments, since it is pin compatible with TPS922053 part, If we replace directly, it should work as well right ?

0 Steven Li 11 months ago in reply to Nitin Gond

TI__Mastermind 23150 points

Hi Nitin,

TPS922053 is not pin-compatible with TPS923652. You need to design a new circuit if you want to use TPS922053.

Best Regards,

Steven

0 Nitin Gond 10 months ago in reply to Steven Li

Prodigy 55 points

Can we get a simulation files for those parts?

0 Steven Li 10 months ago in reply to Nitin Gond

TI__Mastermind 23150 points

Hi Nitin,

SIMPLIS models for those parts are available upon request. Please let me know if you need them.

Best Regards,

Steven
