TPS92690-Q1: TPS92690 with SHUNT MOSFET,just like TPS92641

Tiger Wang

Part Number: TPS92690-Q1
Other Parts Discussed in Thread: TPS92690, TPS92641

Tool/software:

Dear Sir,

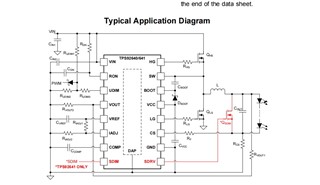

I use TPS92690 to driver a 8A/14V-16V high power LED, and VIN is 12V.. I also want this boost LED driver with SHUNT MOSFET functionality, can I add a MOSFET paralling with LED, just like TPS92641(RED line)?

Thanks

David

10 months ago

0 Xiaoguang 10 months ago

TI__Genius 17520 points

No, you can't do that. TPS92690 is boost device. You can't short output to gnd directly as input voltage will be short to gnd via inductor and output diode without any protection.

0 Tiger Wang 10 months ago in reply to Xiaoguang

Expert 1625 points

How to switch LED load , on or off , quickly， it's better at us level?

0 Tiger Wang 10 months ago in reply to Xiaoguang

Expert 1625 points

Vout -->MOSFET --->Rcs --->GND,

0 Xiaoguang 10 months ago in reply to Tiger Wang

TI__Genius 17520 points

May i know what is your application?
