Tool/software:
Hi Team,

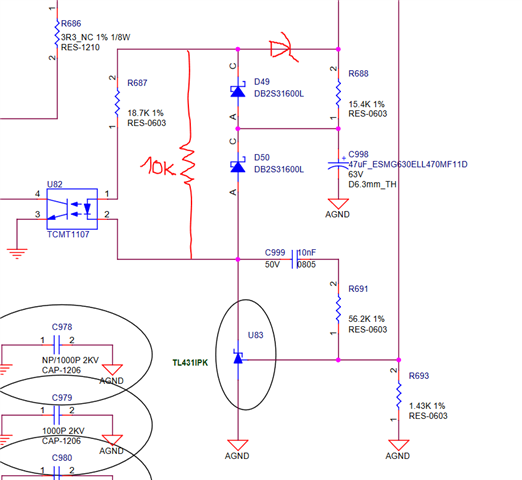

may we know of any issue with this schematic? could help double check it for us?
after we checked, there seem to be no problem, thanks for your help and learn from you.
Vin=10v~12v, Vout=54v/1.2A.
Hi Tommy,
Thanks for reaching out.
I found the following points:
- You should add a resistor to properly bias TL431.
- A zener diode has to be added to protect TL431, as the abs max. rating will be exceeded otherwise.
You can also refer to this reference design: PMP22764 reference design | TI.com
Also you should check if the transformers saturation current is high enough to sopport the max. primary current of around 22A.
The rest seems to be good.
Best regards
Moritz
