LM74700D-Q1: Volatge on the Gate pin

DARSHAN M M V

Part Number: LM74700D-Q1

Tool/software:

Hell team,

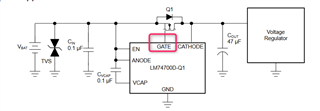

I just wanted to know what will be voltage on the Gate pin w.r.t ground when the Vbat is 24V ,Please refer the screenshot

10 months ago

0 Shiven Dhir 10 months ago

TI__Mastermind 46140 points

Hi Darshan,

The controller can drive GATE to VIN+12V max.

It is important to note that the controller uses linear regulation scheme to drive the FET and GATE voltage depends on the current flowing from source to drain.

(+) [FAQ]: Ideal Diode Controller or ORing Controller gate voltage is lower than expected - Power management forum - Power management - TI E2E support forums

Regards,

Shiven Dhir
