TLV61048: Regarding TLV61048 Boost Simulation in PSpice for TI and Tina.

Gayathri Palla

Prodigy 70 points

Part Number: TLV61048

Tool/software:

Hi Team,

Iam simulating TLV61048DBVR in PSpice for TI and Tina. Output voltage is 5V in PSpice for TI where as in Tina output voltage is 8V and settings derived for 6V. As per the datasheet, the feedback resistor values were calculated. Please clarify this in the simulation

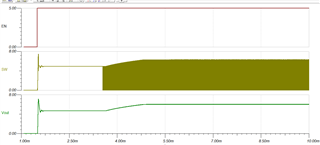

below are the simulation results in Tina

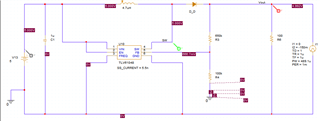

below are the simulation results in PSpice for TI.

Thanks,

Gayathri.

0 Lei Zhong 11 months ago

TI__Mastermind 18970 points

Hi Gayathri,

In TINA simulation, the Vout is 6V, not 8V, so it's correct.

There is something wrong with the PSpice mode and you may use the TINA model for simulation.

Just let me know if you see any concerns.

Regards

Lei

0 Gayathri Palla 11 months ago in reply to Lei Zhong

Prodigy 70 points

Hi Lei,

In TINA, there was an initial spike that settled down at 6V. Is that okay

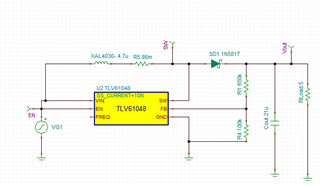

Below is the circuit from my design. Please review it and provide your feedback.

0 Lei Zhong 11 months ago in reply to Gayathri Palla

TI__Mastermind 18970 points

Hi Gayathri,

The initial spike should be caused by the inrush current when Vin is on. It's OK.

There is no concerns for your schematic.

I just noticed that there is a label of IOUT = 4A5 in your schematic. What's the max Iout needed in your application?

Regards

Lei

0 Gayathri Palla 11 months ago in reply to Lei Zhong

Prodigy 70 points

Hi Lei,

The actual load current is 0.5A. Will the XAL4030-472MEC inductor be suitable for this 0.5A current.

Thank,

Gayathri

0 Lei Zhong 11 months ago in reply to Gayathri Palla

TI__Mastermind 18970 points

Hi Gayathri,

No problem for the Iout. And the inductor XAL4030-472MEC is OK.

Regards

Lei
