TPS2376-H: Spacing Requirement for 60V IEC60950

Said Djedid

Part Number: TPS2376-H
Other Parts Discussed in Thread: TPS2376HEVM

Tool/software:

Team,

Could you please explain more about the layout guide from the datasheet "Spacing consistent with safety standards like IEC60950 must be observed between the 48-V input voltage rails " ?

1. What is the spacing requirement exactly? And for 60V ?

2. Why it seems that on the TPS2376HEVM PCB no IEC60950 clearance has been respected ?

Thank you.

Said

11 months ago

0 Diang Xing 11 months ago

TI__Mastermind 37121 points

Hi Said,

Thanks for reaching out! Sorry that PoE team is quite busy recently. I will try to get back to you in 4 business days.

Best regards,

Diang

0 Diang Xing 11 months ago in reply to Diang Xing

TI__Mastermind 37121 points

Hi Said,

Thanks for your patience.

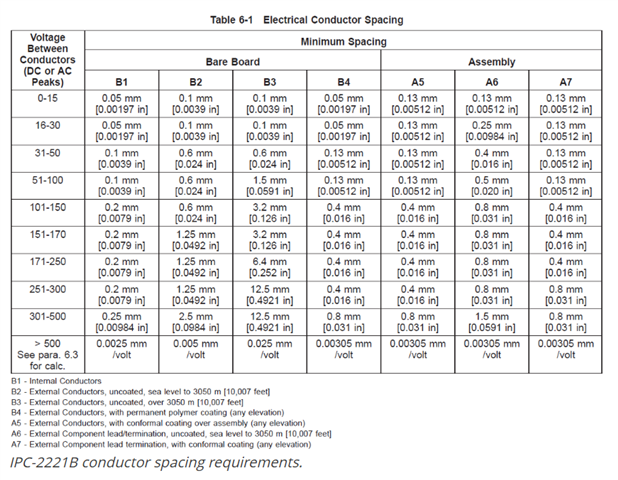

Sorry that I do not have IEC60950 access. You can also refer below table from IPC-2221 (referred from https://resources.altium.com/p/using-an-ipc-2221-calculator-for-high-voltage-design) and check the 51-100V spacing. Hope it can help.

Best regards,

Diang
