UCC28951: Pspice for TI model of UCC28950 does not work

VAN THAI

Part Number: UCC28951
Other Parts Discussed in Thread: UCC28950

Tool/software:

Hello,

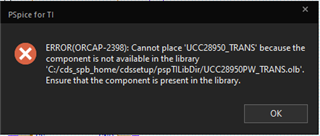

This is first time I use PSpice for TI. I want to simulate phase shift full-bridge converter using UCC28950/28951. In the TI library of Pspice for TI, there is UCC28950_TRANS model but when I tried to use that model, this window popped up:

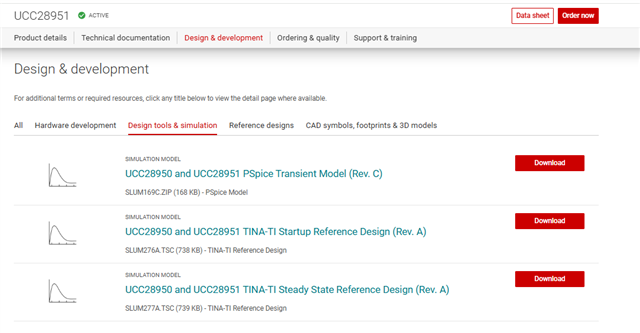

I tried to download the model from the TI website (slum169C) and add it into the library but the result is the same.

Can you tell me how to fix this?

Thank you

11 months ago

0 Mike O' 11 months ago

TI__Guru* 86286 points

Hello,

Your inquiry has been received and is under review.

Regards,

0 Mike O' 11 months ago in reply to Mike O'

TI__Guru* 86286 points

Hello,

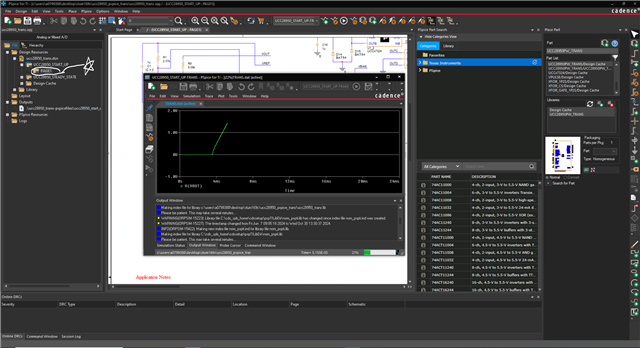

I down loaded the PSpice Transient model and ran it on TI PSpice.

The simulation appears to be running without it issue. There are a couple of error messages up front but the simulation runs.

I did check the TI library for parts and the UCC28950/1 model is not present. However, you should be able to modify the transient PSpice model to simulate your design.

I am going to forwarded this request to the TI PSpice team so they can get the model release in the TI PSpice library.

Regards,

0 Mike O' 11 months ago in reply to Mike O'

TI__Guru* 86286 points

Hello,

To whom it may concern. When you have a chance could someone from the PSpice team look into why the UCC28950/1 PSpice model is not part of the TI library?

It is released as a transient model at the following link.

https://www.ti.com/lit/zip/slum169

Regards and thanks,

Mike
