TPS563300: DC-DC converter

Hi

Please refer to this Apps note: Designing a Simple and Low-Cost Flybuck Solution With the TPS62933F ,You can output iso and non-iso output at same time.

Currently I am using TPS563300DRLR this regulator and flyback transformer in my design. ----are you already using the Fly-buck topology ?

Can you share your end equipment and application needs? (like the Iout needs)

Thanks and best regards.

Hi,

Are you already using the Fly-buck topology ?  - Yes.

Can you share your end equipment and application needs? - Vin : 24V, Vout1(non-isolated) : 3.3V, Iout1 (non-isolated): 100mA, Vout2 (Isolated) : 5V, Iout (Isolated): 200mA.

BR,

Shangugapriya G

Hi Shangugapriya

Can you please share the Flybuck schematic you used? I think you already has one isolated output and one non-isolated output?

Thanks and best regards.

Hi,

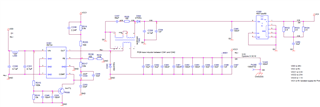

Here is the schematic which I am having. Here used Buck converter is l5972d from STM. In my current design I thought to use TPS563300DRLR from TI.

But In addition to this, I am searching for any other alternate technology for generating isolated and non-isolated output using single IC.

BR,

Shangugapriya G.

Hi

You  got one non-isolated output-VCC1, and one isolated output-powering for IC300; Fly-Buck is suitable to use here.

TPS563300 is PFM mode under light load, to configure Fly-buck ,please choose TPS62933F.

 TPS62933F is internal compensated, so no need to design the COMP network, and it's synchronous buck converter, no need to add D300; it also has lower Rdson and programmable fsw from 200k to 2.2MHz. You can use the 250kHz same as current circuit or you can choose higher fsw to achieve smaller transformer size.

Is recommended for your application here. And there is an design example: Designing a Simple and Low-Cost Flybuck Solution With the TPS62933F

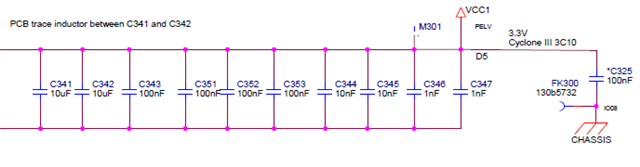

BTW, Is there any system concern to place so many Couts ? There should be no need for the 1nF and 10nF and you can remove 2×100nF；

Thanks and best regards.

Hi

Thanks for your inputs..

I will check it come back to you.

Is there any system concern to place so many Couts ?  - Added for filtering purpose only.

BR,

Shangugapriya G
