BQ25756: The drive strength of BQ25756/BQ25856-Q1

Manu Chang

Intellectual 2010 points

Part Number: BQ25756
Other Parts Discussed in Thread: BQ25856-Q1

Tool/software:

Hi team,

My customers are evaluating the BQ25756 and BQ25856-Q1, and they have a question about the drive strength on the gate driver of both devices. In the datasheet they could not be able to find the drive strength of the gate drivers. Do you have any idea that the drive strength of all 4 gate drivers?

BR,

Manu

10 months ago

0 Ethan Galloway 10 months ago

TI__Mastermind 31155 points

Hello Manu,

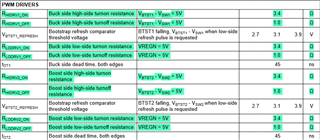

Thanks for working with this. The gate drive strength is under PWM Drivers in the datasheet. I've attached a screenshot of the datasheet below.

Best Regards,
Ethan Galloway

0 Manu Chang 10 months ago in reply to Ethan Galloway

TI__Intellectual 2010 points

Hi Ethan,

Thanks for the reply, I have noticed these parameters, but it didn't mention that the sink/source current capability of each gate driver in this table. These parameters are what customers are curious about. Do you have any insights on this?

BR,

Manu

0 Ethan Galloway 10 months ago in reply to Manu Chang

TI__Mastermind 31155 points

Hello Manu,

Thanks for clarifying. The gate drive strength is listed as a resistance because the gate drive voltage can vary with an external gate drive supply.

You can use the following formula to calculate the gate drive current:

Gate Drive Current = Gate Drive Supply * Turn-on Resistance

The equation is the same for the turn-off resistance as well.

Let me know if you have any questions about this.

Best Regards,
Ethan Galloway

0 Manu Chang 10 months ago in reply to Ethan Galloway

TI__Intellectual 2010 points

Hi Ethan，

Thanks for the reply. To clarify, the current is Gate Drive Supply * Turn-on Resistance or Gate Drive Supply/Turn-on Resistance?

If it is Supply * Resistance, could you kindly explain why the equation is like this?

BR,

Manu

0 Ethan Galloway 10 months ago in reply to Manu Chang

TI__Mastermind 31155 points

Hello Manu,

Thanks for noticing that. The correct equation is Gate Drive Equation = Gate Drive Supply/Turn-on Resistance.

Let me know if you have any more questions.

Best Regards,
Ethan Galloway
