BQ24610: Load power path

Colin Chen

Part Number: BQ24610

Tool/software:

Dear Experts,

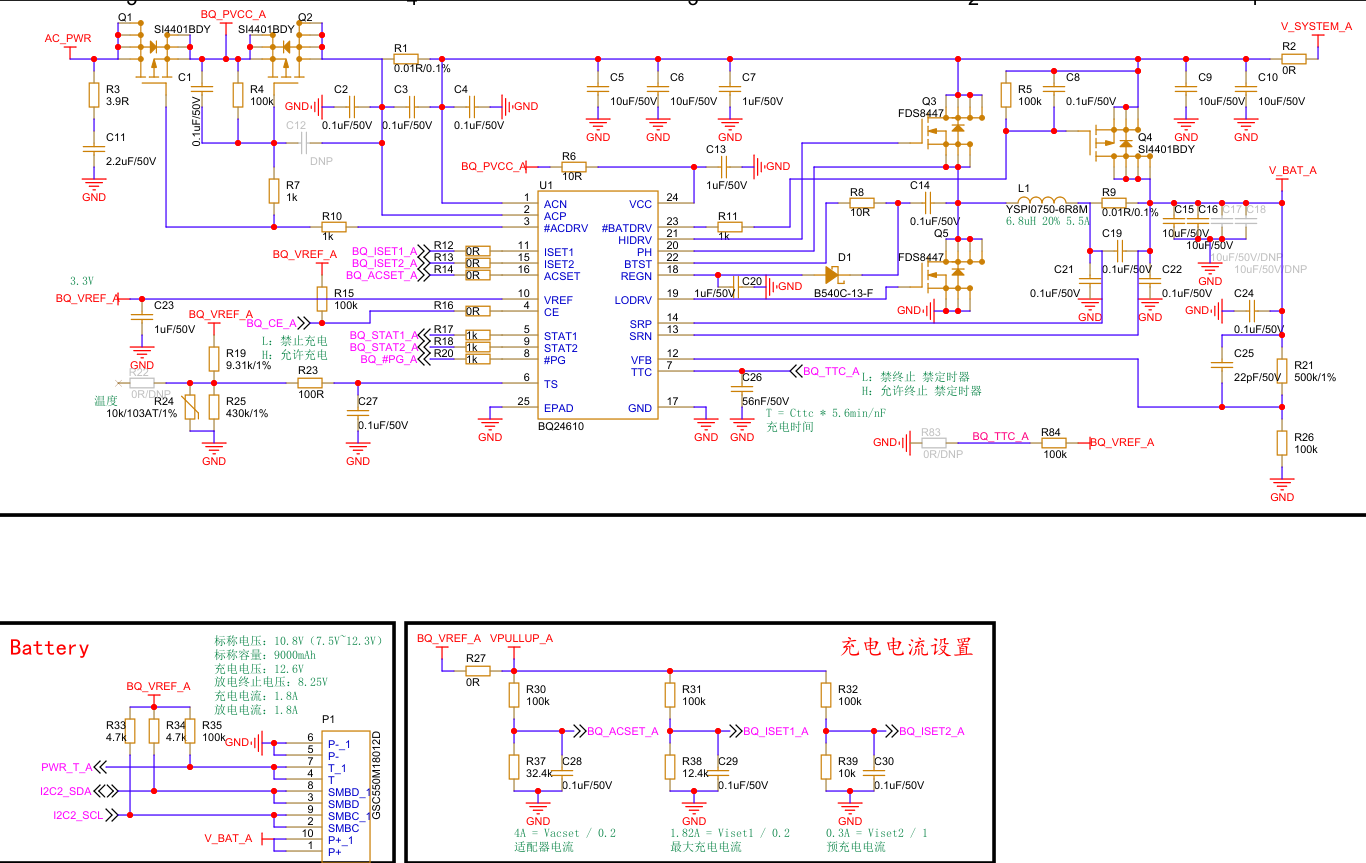

We are applying BQ24610, and the schematic diagram is as follows. When the input voltage is 24V and the battery voltage is 12.4V, the load power path （V_SYSTEM）waveform is a sawtooth waveform,and the peak voltage is about equal to the battery voltage. Is this normal? Also, does the input voltage of the adapter need to be greater than the battery voltage for the chip to start normally

8 months ago

0 Christian Moyer 8 months ago

TI__Mastermind 31551 points

Hello Chen,

Colin Chen said:
waveform is a sawtooth waveform,and the peak voltage is about equal to the battery voltage. Is this normal?

Do you see this at lower input voltages?

Colin Chen said:
Also, does the input voltage of the adapter need to be greater than the battery voltage for the chip to start normally

Yes.

Best Regards,

Christian

0 Colin Chen 8 months ago in reply to Christian Moyer

Intellectual 825 points

Hi Christian,

When the battery is 12V, the input voltage starts to increase from 12V, and when the voltage reaches 14V, a sawtooth waveform begins to appear. I think the waveform is generated at the beginning of charging, is that correct？Thank you

0 Christian Moyer 8 months ago in reply to Colin Chen

TI__Mastermind 31551 points

Hello Chen,

Do you have a system load, Do you see any difference between system load vs no system load?

Best Regards,

Christian.
