TPS54KC23: Device footprint

Abdolhossein Kangani

Prodigy 90 points

Part Number: TPS54KC23

Tool/software:

Hi all,

How kann I get the TPS54KC23 footprint for Altium Designer?

Many thanks.

Kind regards,

A. Kangani

8 months ago

0 Tomoya Ide 8 months ago

TI__Genius 11396 points

Hi Abdolhossein,

You can download the footprint for the TPS54KC23 from Ultra Librarian:

https://vendor.ultralibrarian.com/TI/embedded/?gpn=TPS54KC23&package=RZR&pin=16&sid=017f654b8d6c0018e32439c7141305072001306a007e8&c=1

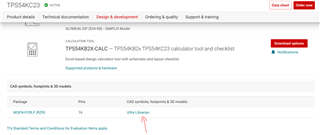

This link is also available on the ti.com product page; please refer to the section titled "CAD symbols, footprints & 3D models," as illustrated below:

Thank you,
Tomoya
