Tool/software:
Hello,
can you please share CAD symbol, footprint and 3D step file for the component?
Regards
Sergey
Hi Sergey,
thanks for using E2E.
The CAD symbol, footprint are not available yet. I triggered the responsible team to publish it. It might take up to 3 weeks until availability. I will follow up and let you know. Sorry for the inconvenience.
Package drawings can be found at the end of the datasheet or here.

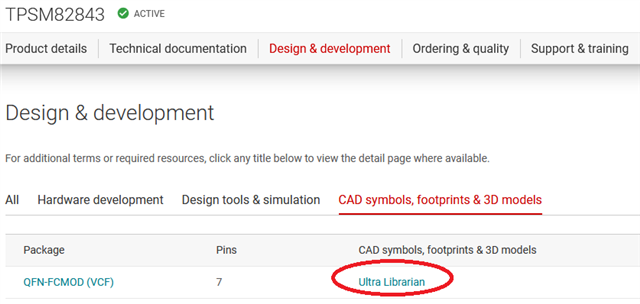

The 3D step file can be found on the product web-page under the Ultra Librarian link:
Best regards,
Andreas.
Hi Sergey,
thanks for the feedback.
I need to check with the experts team.
Could you please let me know the exact selection, you made in Ultra Librarian? (Basic View / Detailed View; Altium - Altium Designer or PCAD v14 or PCAD v15).
Which Altium version are you using?
Do you get any error information from Altium, which provides more details on why the footprint does not work?
Best regards,
Andreas.
I am not Sergey, yet I have used Altium 18.0 and selected these options in Ultra Librarian
Then, I clicked File->Run Script, then selected PrjScr file and then the text file to generate the pcblib and schlib files. schlib file is ok, however pcblib file shows nothing. I dont know if there is something wrong with my Altium version, since I do not use the latest version.
Hi Ahmet,
sorry I overlooked the name and I thought it was a reply from the original thread.
Thanks for the details.
I will check and give you an update by tomorrow.
Best regards,
Andreas.
Ahmet,
while waiting for feedback from the experts, you might want to check the instructions provided in file ImportGuides.html, which should be part of the downloaded zip file.
I quickly tried with Altium 23 and first the pcblib did not show anything, but after clicking the "Panel" button located in the lower right corner, I chose PCB Library and selected the listed footprint. After that it was showing the footprint.
Let me know if this could help you.
Best regards,
Andreas.
Hi Ahmet,
the expert team confirmed the files imported from Ultra Librarian are OK. The visibility of the footprint is related to Altium. You need to select the footprint from the PCB Library window.
You could also directly open the .PcbLib file in Altium to view the footprint.
Best regards,
Andreas.
