UCD3138064: UCD3138064 X0

Raphael_w

Intellectual 295 points

Part Number: UCD3138064
Other Parts Discussed in Thread: UCD3138128

Tool/software:

Dear,

I got a problem on UCD3138064 when I used the FusionX0ToHext to convert the X0 file.

I solved the UCD3138128 via the FusionX0ToHext to convert the X0 file.

https://e2e.ti.com/support/data-converters-group/data-converters/f/data-converters-forum/1439304/ucd3138128-ucd3138128?tisearch=e2e-sitesearch&keymatch=UCD3138128#

Now I would like to confirm whether the commands I entered for UCD3138064 are correct.

"--infile test.x0 --pflash-checksum calc --export both --format intel --outfile file.hex --ic-family UCD310064 --flash-block-size 64"

Because the checksum in the hex file I obtained through the FusionX0ToHext is different from the one produced by the customer using the TI tool(Fusion Design Online).

Regards,

Raphael

7 months ago

0 Hemanth Sreeperumbudur 7 months ago

TI__Intellectual 2480 points

Hi Raphael,

I will get back to you in a day.

Regards
Hemanth

0 Hemanth Sreeperumbudur 7 months ago in reply to Hemanth Sreeperumbudur

TI__Intellectual 2480 points

Hi Raphael,

My colleague, Deepak will provide an answer today.

Regards
Hemanth

0 Deepak K 7 months ago in reply to Hemanth Sreeperumbudur

TI__Prodigy 400 points

Hi Raphael,

There are three different ways to do checksum calculations in both FusionX0ToHext tool and TI fusion design tool.

For FusionX0toHext tool here are the command options for checksum calculation

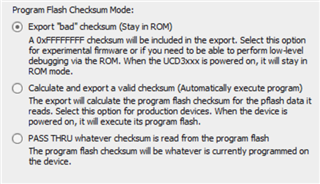

For TI fusion design tool here is the section where you can choose these options

Please make sure you are choosing the same option in both the cases before generating the .hex file and try all three options to confirm the issue is resolved.

Regards,

Deepak K

0 Raphael_w 7 months ago in reply to Deepak K

Intellectual 295 points

Hi Deepak K,

Thanks for your help.

I didn't see the setting inthe operation process provided by customer.

Should I send the setting for customer check?

And, regarding these instructions, which settings do they correspond to in TI's tool?(calc/none/source)

0 Deepak K 7 months ago in reply to Raphael_w

TI__Prodigy 400 points

Hi Raphael,

Thanks for sharing the customer settings, please try the modified command line based on the settings you shared.

"--infile test.x0 --pflash-checksum calc --pflash-with-boot-checksum-calc above --bflash2k-checksum calc --boot-size 2 --export both --format intel --outfile file.hex --ic-family UCD310064 --flash-block-size 64"

Please use the following command line to know more about all the options that can be used in FusionX0ToHex tool.

FusionX0ToHex --help

Regards,

Deepak K
