UCC27282: UCC27282DRCR

Yoni Zlotnick
Prodigy 100 points
Part Number: UCC27282

Tool/software:

Hi

I downloaded the UCC27282DRCR spice module through the web site  to simulate the driver in Altium 22

files UCC27282_Unencypted_PSpice_Model and UCC27282

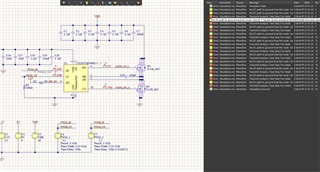

I am getting an error on the simulation

can you send my an update lib file to the component that you verified that is working on altium ?

Regrades

  • 0
    TI__Mastermind 23155 points

    Hello Yoni,

    The spice models are confirmed and validated with the PSpice for TI simulator and should be compatible with Pspice in general. This is from our understanding one of the most common spice simulator tools. Can you see if the part works with the Pspice for TI? it is available as a free download on ti.com.

    Regards,

  • 0 in reply to Richard Herring
    Prodigy 100 points

    Hi Richard

    Altium is one of the most advance  electrical design software .

    The two spice file in the web site failed to run on the altium.

    Can you please verify if i am simulating wrong the component by running the file in altium at TI .

  • 0 in reply to Yoni Zlotnick
    TI__Mastermind 23155 points

    Hello Yoni,

    I looked, and we are not set up to run the spice simulations in the Altium tool. It looks like there is some error relating to C28 which is the cap on the HB to HS pin I believe. can you see if the adding some high resistance from HS to ground will address the error message?

    Regards,
