BQ78Z100: Battery Management Studio read device name via HDQ

Winston Gao

Part Number: BQ78Z100
Other Parts Discussed in Thread: EV2400, , BQSTUDIO, BQ28Z610

Tool/software:

Hi,

I launches Battery Management Studio that detect my setup, which include a EV2400 eval board, witch connect to our BQ78Z100 via HDQ interface. It can read out information including Device Name like below image:

My questions are:

How does the Battery Management Studio read the device name string via HDQ command? There is no such information in neither datasheet nor technical reference for HDQ to read.
Is there a way to operate in the Battery Management Studio to just set/get single item, such as set/get device name only? I found "Read All" and "write All" button which involve hundreds of read/write, which are hard to analyze.

Regards,

Winston

7 months ago

0 Jose Couso 7 months ago

TI__Mastermind 27321 points

Hello Winston,

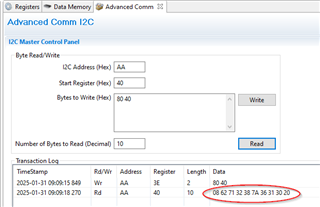

Please use Advanced Comms Tab in bqStudio to read single addresses. See below an example

You will need to convert the hex to ascii format.

Here's an example with the BQ28z610 device.

To view the physical addresses in bqStudio. Navigate to Windows -> Preferences -> All global Settings -> Show advanced commands.

0 Winston Gao 7 months ago in reply to Jose Couso

Prodigy 30 points

Hi Jose,

How to read Device Name via HDQ interface for BQ78Z100? HDQ can only read one byte address, however, bqStudio still can reae/write device name, which are not in the HDQ data set.

Regards,

Winston

0 Jose Couso 7 months ago in reply to Winston Gao

TI__Mastermind 27321 points

Hi Winston,

You should be able to read 8 bits at a time. Simply specify the address with offset. See this thread for more details. https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/636594/bq34z100-bq34z100-control-command-communication-using-hdq-interface-over-uart

Also, I would suggest to put a bus sniffer to see how EV2400 is doing it.
