TPS26750: not want to source power to non-PD device

Tsuyoshi Nogi

Intellectual 1970 points

Part Number: TPS26750

Tool/software:

Hi experts,

I would like to know about how to restrict power supply to non-PD device?

To PD device, we can configure PDOs and eliminate power supply to it.

how about non-PD device?

I would like you to tell how we configure registers/external circuit.

Thanks and regards,

Tsuyoshi

7 months ago

0 Chris Sterzik 7 months ago

TI__Guru 64051 points

Hello,

For a non-PD device the power is advertised through the Rp termination.

https://www.ti.com/lit/wp/slyy109b/slyy109b.pdf#page=4

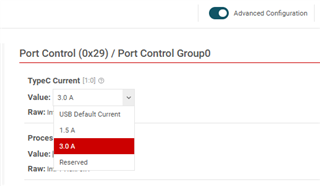

In the advanced configuration of the GUI you can select in the Port Control Register.

Regards,
Chris

0 Tsuyoshi Nogi 7 months ago in reply to Chris Sterzik

TI__Intellectual 1970 points

Hi Chris,

Thank you for your reply.

I think "TypeC Current" register determine Rp value (=capable load current).

If we set "TypeC Current" register to "Reserved", the device will not source to non-PD device?

Thanks and regards,

0 Chris Sterzik 7 months ago in reply to Tsuyoshi Nogi

TI__Guru 64051 points

Hello,

Tsuyoshi Nogi said:
If we set "TypeC Current" register to "Reserved", the device will not source to non-PD device?

I do not believe that the 'reserved' is a valid setting. I will double confirm. Have you tested with the EVM?

https://www.ti.com/lit/ug/slvucr7/slvucr7.pdf#page=34

Thanks and Regards,

Chris

0 Chris Sterzik 7 months ago in reply to Chris Sterzik

TI__Guru 64051 points

Hello,

I quickly tested on my side and with the 'reserved' selected the PD would not establish a default (5V) contract with either a PD or non-PD capable sink. I am still working to confirm with the larger team.

Regards,

Chris

0 Chris Sterzik 7 months ago in reply to Chris Sterzik

TI__Guru 64051 points

Hello,

To close this item:

The reserved setting is not valid and should not be used.
The Type-C specification requires the supply of VBUS when a source detects the presence of an attached device (Sink) port.

Regards,
Chris
