LP8864S-Q1: shutdown current

O'Mellin

Part Number: LP8864S-Q1

Tool/software:

team, can you please confirm that this device requires an external Vdd and doesnt draw current from the Vin (vsense pins) ?

therefore the shutdown current would exclusively be the Vdd shutdown current. If the device is able to draw it's power from vsense pin : what is the shutdown current of the device please ?

thanks

7 months ago

0 Steven Li 7 months ago

TI__Mastermind 23190 points

Hi O'Mellin,

Our expert is currently out of office and will reply to you later. Thanks for your understanding.

Best Regards,

Steven

+1 Zhiqian Wu 7 months ago in reply to Steven Li

TI__Mastermind 31505 points

Hi, Melin

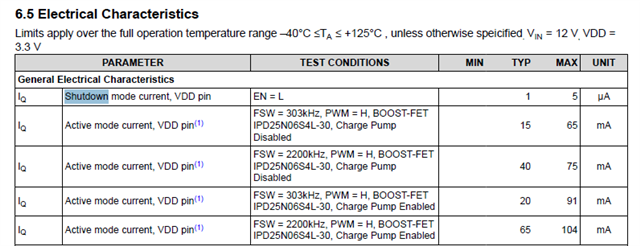

Pls refer to the datasheet, the shutdown current here is only the VDD pin shutdown current.

0 Jean-Pierre Colin 7 months ago in reply to Zhiqian Wu

Prodigy 30 points

Hello Ti Team,

What is the consumption on VSENSE_P and VSENSE_N with EN=L and +BAT presents on VSENSE_X pins?

Thanks

0 Steven Li 7 months ago in reply to Jean-Pierre Colin

TI__Mastermind 23190 points

Hi Jean-Pierre,

Our expert is currently out of office and will reply to you later. Thanks for your understanding.

Best Regards,

Steven

0 Zhiqian Wu 7 months ago in reply to Jean-Pierre Colin

TI__Mastermind 31505 points

Hi, Jean

May I kindly know why you want to ask this questions? Device will not work if EN is low.

0 Jean-Pierre Colin 7 months ago in reply to Zhiqian Wu

Prodigy 30 points

Mr Wu,

To estimate the total current consumption on battery of our display in sleep mode, vehicle in park mode. Car manufacturers can request something like 50µA/100µA max.

Because VSENSE_P and VSENSE_N are directly connected to +BAT (12V), leakage current on both pin is very important.

Regards

Jean-Pierre Colin

0 Zhiqian Wu 7 months ago in reply to Jean-Pierre Colin

TI__Mastermind 31505 points

Hi, Jean

The main concern for the leakage of VSENSE is the resistor leakage.

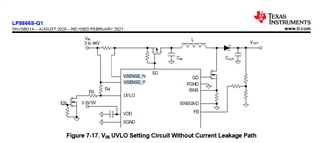

Pls refer to below suggestion in the datasheet of the low leakage current.

0 Jean-Pierre Colin 7 months ago in reply to Zhiqian Wu

Prodigy 30 points

Mr Wu,

If the transistor between R5 and GND is not conductive, leakage current on VSENSE_P, VSENSE_N and UVLO is still relevant.

Regards

Jean-Pierre Colin

0 Steven Li 6 months ago in reply to Jean-Pierre Colin

TI__Mastermind 23190 points

Hi Jean-Pierre,

Our expert is currently out of office and will reply to you later. Thanks for your understanding.

Best Regards,

Steven

0 Zhiqian Wu 6 months ago in reply to Jean-Pierre Colin

TI__Mastermind 31505 points

Hi, Jean

Sure, the current on VSENSE_P/VSENSE_N is low and normally it can be ignored. I needs check with ATE for the detailed value.
