TPSM8D6C24: Thermal dissipation characteristic of internal inductor

Shunsuke Yamamoto

Expert 7641 points

Part Number: TPSM8D6C24

Tool/software:

Hi team,

Are there any ways to estimate the thermal dissipation characteristic of internal inductor of TPSM8D6C24?

Or do we specifiy the thermal dissipation characteristic of internal inductor of TPSM8D6C24?

Best regards,

Shunsuke Yamamoto

6 months ago

0 Savith Kumar Rayakanti 6 months ago

TI__Expert 5690 points

Hi Shunsuke,

The module thermals are analyzed together with Inductor and IC , Inductor used in TPSM8D6C24 is XGL6030-221MEC

you can find and analyze the inductor using below link from design tools from coil craft

https://www.coilcraft.com/en-us/tools/power-inductor-finder/#/

https://www.coilcraft.com/en-us/tools/dc-dc-optimizer/#/

Thank you

Savith

0 Shunsuke Yamamoto 6 months ago in reply to Savith Kumar Rayakanti

TI__Expert 7641 points

Hi Savith,

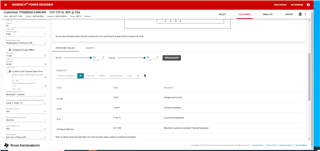

Thank you for the answers! It is helpful to answer customer's questions. On the datasheet, WEBENCH can simulate the thermal simulation of TPSM8D6C24, but it seems we don't have webench models of TPSM8D6C24. May I know when we will release it if we plan to release it?
