LM5146-Q1-EVM12V: EVM Size

Zoey Wu

Tool/software:

hi team,

what is the size of LM5146-Q1-EVM12V? because i don't have AD or cadence on my computer. Could u kindly help to answer this? thanks

7 months ago

0 Timothy Hegarty 7 months ago

TI__Guru 74302 points

Hi Zoey,

Please refer to the EVM user's guide. This is available in the product folder and in the EVM tool folder.

Regards,

Tim

0 Zoey Wu 7 months ago in reply to Timothy Hegarty

TI__Expert 5855 points

Hi team

i can't find this in the whole folder except the Gerber file which i can't open it. Would u mind take a few minutes and give me the information? customer urgently need this to conform whether our size can suit their product. thanks!

0 Timothy Hegarty 7 months ago in reply to Zoey Wu

TI__Guru 74302 points

Hi Zoey,

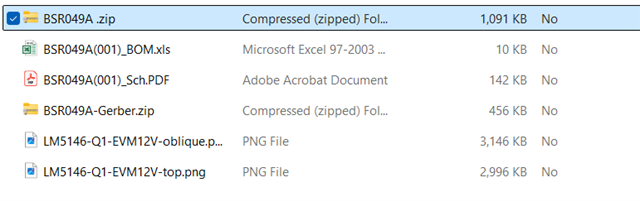

The Altium files are the in the zip file in the product folder:

Also, the PCB size is indicated in the user's guide, 80mm x 63mm. The actual solution size is smaller than this.
