Hi,

I am using this IC for my project,

Requirement is : 10V output voltage and 300 mA current.

1) Input voltage range mentioned in datasheet as 6V to 115V, while in simulation I am not getting output up to 19V. Why so ?

2) What is output voltage for Bias regulator and threshold for VDD UVLO ?

Thanks

6 months ago

0 Nityanand Hegde 6 months ago

TI__Expert 5490 points

Hi Rahul,

What is the min. input voltage value you have considered for 19V output voltage?

Thanks,

Nitya

0 Rahul Kumar 6 months ago in reply to Nityanand Hegde

Prodigy 20 points

Hi Nityanand,

19V is not output voltage, I mean to say I'm not getting output up from 6V to 19V of input voltage. From 20V of input voltage I'm getting output.

Thanks

Rahul

0 Nityanand Hegde 6 months ago in reply to Rahul Kumar

TI__Expert 5490 points

Hi Rahul,

Can you share your simulation setup [schematic], operating conditions and waveform that your are referring to debug further?

Thanks,

Nitya

0 Rahul Kumar 6 months ago in reply to Nityanand Hegde

Prodigy 20 points

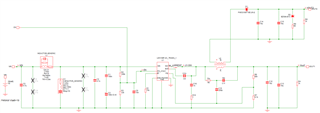

1) Reference Schematic

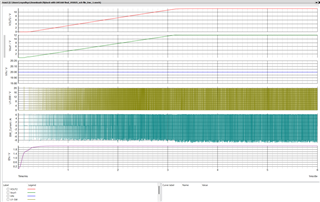

2) Waveform at 19V input, where Vout1 = 0V after 3ms

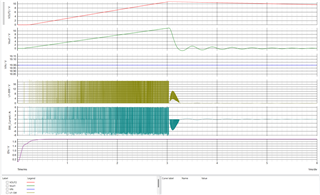

3) Waveform at 20V input, where Vout = 12V after 3 ms.

Thanks

0 Nityanand Hegde 6 months ago in reply to Rahul Kumar

TI__Expert 5490 points

Hi Rahul,

Looks like there is some bug in the simulation file. Does this issue happen across the load current and shorting the VIN to EN/UVLO pin?.

Thanks,

Nitya

0 Rahul Kumar 6 months ago in reply to Nityanand Hegde

Prodigy 20 points

yes, Issue occurred across the load current and with shorting to VIN and EN.

0 Nityanand Hegde 6 months ago in reply to Rahul Kumar

TI__Expert 5490 points

Hi Rahul,

This could be issue with that particular Simplis file.

Once you complete the actual schematic, I can review from my side and provide you the comments.

Thanks,

Nitya
