LM74910-Q1: Vout falling during Jump start waveform

Che Wen Yeh

Part Number: LM74910-Q1

Tool/software:

Hi,

Our customer found that Vout drops during the Jump Start test(14V to 19V), but they confirmed that OVP (setting 27V), OCP (measure CTMR) was not triggered.

What other possible reasons could cause Hgate to turn off(Vout drops)?

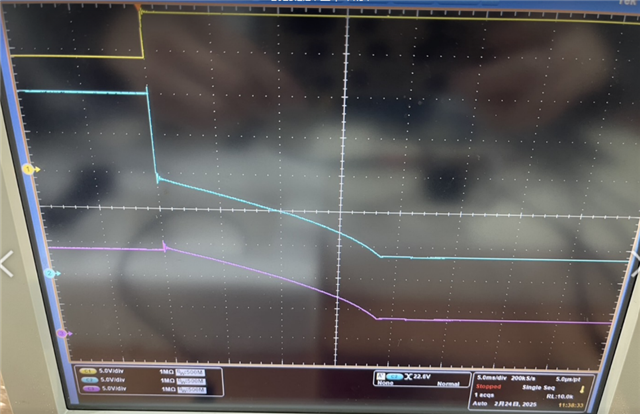

Ch1 : Vin, Ch2 : Hgate, CH3 : Vout

6 months ago

0 Shiven Dhir 6 months ago

TI__Mastermind 47460 points

Hi Che Wen Yeh,

During 14V to 19V jump, is it possible that the COUT had enough inrush current to trigger short circuit protection?

Please share the schematic.

Regards,

Shiven Dhir

0 Che Wen Yeh 6 months ago in reply to Shiven Dhir

Intellectual 910 points

Hi Shiven,

schematic as following, thanks.

0 Shiven Dhir 6 months ago in reply to Che Wen Yeh

TI__Mastermind 47460 points

Hi Che Wen Yeh,

There is a chance that short circuit is triggered. Please probe FLT/ and check if there is any fault generated

Regards,

Shiven Dhir
