TPSM846C23: Power Issue

Abhishek Manoj

Part Number: TPSM846C23

Tool/software:

Dear Team,

After removing one power module in the stacked configuration. The output of the power module is showing 3.7V instead of 0.68V.

The clocks are coming properly. The DIFFO pin is showing only 0.004V and COMP pin is showing 4.41V.

Can you please address what might be the issue with the IC.

Regards,

Abhishek

6 months ago

0 Peter James Miller 6 months ago

TI__Guru 56825 points

Abhishek Manoj

Can you please provide your schematic, including which module was removed from the stacked configuration?

Have you confirmed that VOUT is connected to the VS+ and VS- is connected to GND on the remaining module?

0 Abhishek Manoj 6 months ago in reply to Peter James Miller

Prodigy 160 points

Hi Peter,

I had removed U13 from the stacked configuration. Slave is removed.

Yes, VOUT is connected to VS+ and VS- is connected to ground.

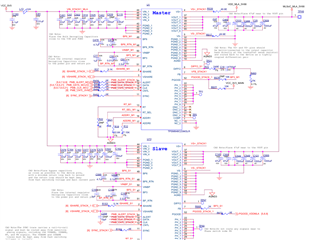

Schematics is attached for your reference

Regards,

Abhishek

0 Calan Elaya 6 months ago in reply to Abhishek Manoj

TI__Genius 11295 points

Hi Abhishek,

A response will be posted this week.

Thanks,

Calan

0 Abhishek Manoj 6 months ago in reply to Calan Elaya

Prodigy 160 points

Hi team,

Any updates..

Regards,

Abhishek

0 Tahar Allag 6 months ago in reply to Abhishek Manoj

TI__Mastermind 32360 points

Hi Manoj,

Sorry for the bouncing back and forth, Eileen is assigned to look into this.

Thanks!

Tahar

0 Eileen Hernandez Hernandez 6 months ago

TI__Expert 5368 points

Hi Abhishek,

It looks like you are seeing higher vout than expected with both master+slave and with just master only configuration. If that is the case, then we are looking at master been the issue. Now we have to narrow down if it it's the master IC itself or the schematic/layout.

Have you tried putting a new working IC with the latest master only configuration?

If swapping IC doesn't fix the issue, then we start recording the behavior. Please attach waveform to observe startup and steady state for VOUT, VIN, PGOOD, and if possible FB.

Regards,

Eileen

0 Eileen Hernandez Hernandez 5 months ago in reply to Eileen Hernandez Hernandez

TI__Expert 5368 points

Hi Abhishek,

Closing ticket due to inactivity. Please let me know if it needs to be re-opened.

Regards,

Eileen
