TPS1H000-Q1: DELAY Pin

Brian Wang0928

Part Number: TPS1H000-Q1

Tool/software:

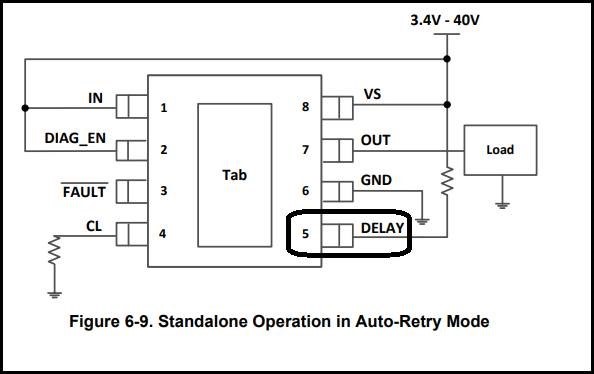

In the schematic, it seems that the DELAY pin is able to be rated with 40V bias power. however, there is only 7V specified for DELAY pin in abs max. rating table.

1. Could you confirm if DELAY is able to sustain up to 40V or not?

2. What's the pull-up resistor at DELAY pin you recommened?

Regards

Brian

7 months ago

0 Timothy Logan 7 months ago

TI__Mastermind 35015 points

Brian,

I can confirm that the DELAY pin can support 40V and is a high voltage pin. 100k is an appropriate pull-up.

Best Regards,
Tim

0 Brian Wang0928 7 months ago in reply to Timothy Logan

TI__Genius 14160 points

In the auto-retry mode as the DELAY pin is connected to 40V via pull-up resistor 100K-Ohm. How to estimate the power consumption of the 100K Ohm?

There is no exact voltage/current info on d/s for DELAY pin.

Regards

Brian

0 Timothy Logan 7 months ago in reply to Brian Wang0928

TI__Mastermind 35015 points

Brian,

I am conferring with the design team and will have a response to you by the end of the week.

Best Regards,
Tim

0 Timothy Logan 6 months ago in reply to Timothy Logan

TI__Mastermind 35015 points

Brian,

Despite the datasheet listing the maximum voltage of the DELAY pin to 7V, you can actually put it up to VS (which has a recommended max of 40V). In the absolute maximum ratings we spec the maximum current of the delay pin to -60mA (when pulled up). The power level is very small and on the EVM we use a 0.063 W resistor for this case.

Best Regards,
Tim

0 Brian Wang0928 6 months ago in reply to Timothy Logan

TI__Genius 14160 points

Thanks. Customer still would like to know how to estimate the power dissipation of this resistor?

Regards

Brian

0 Timothy Logan 6 months ago in reply to Brian Wang0928

TI__Mastermind 35015 points

Brian,

I have pinged our design team for this information and will get back to you shortly.

Best Regards,
Tim

0 Timothy Logan 6 months ago in reply to Timothy Logan

TI__Mastermind 35015 points

Brian,

Internally, the maximum current that you could expect to be see pulled with a 100k is 333uA (across temperature/process). This should give some clarity on the power rating of the resistance needed.

Best Regards,
Tim

0 Brian Wang0928 6 months ago in reply to Timothy Logan

TI__Genius 14160 points

Thanks. One more confirmation, is that 330uA for 100KOhm pulled up to 40V?

Regards

Brian

0 Timothy Logan 6 months ago in reply to Brian Wang0928

TI__Mastermind 35015 points

Yes- that is correct
