BQ34210-Q1: Not able to detect device using BQSTUDIO TOOL

Hello Sumit,

That could be multiple factors that can effect the battery gauge not detecting with BQStudio. The most likely cause is that there is a need for a battery/PWR to be sense on the battery end to turn on the system or you're not using port 2 on the EV2400 debugging module.

Thank you,
Alan

Hi Alan,

Thanks for your response.

Now i am able to access battery gauge IC. I want to update the design capacity for the IC but after giving i2c ommands , i am unable to see the change getting reflected. Also, I want to update the chemistry of battery pack. How to do it?



I have tried update in below screen also, but the changes are not reflecting

Hello Jonny,

Thanks for your response. I was able to setup the Design capacity.
But on main window- Register window , i am not seeing the change->

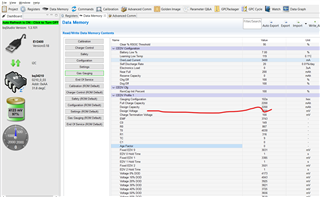

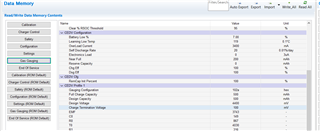

But on data memory tabe, i can see the changes reflecting

Hi Jonny,

Yes, I had clicked on REFRESH button but the values didnt changed.

Also, how tdo I configure for my battery chemistry? In which location can i find it.?

Hi Jonny,

I could not find the below data.

How to configure for my battery chemistry? In which location can i find it.? I am using NiMH Battery Pack of 600mAH Design capacity

Hello Sumit,

Review the "Quick Guide for bq34210-Q1" to explain how to start from scratch to finish product. However The first step you should perform is use the GPPCHEM tool to get your ChemID that is 3% less than difference error. Then once this is completed verified that your critical parameters for your data memory registers have been updated to where you would follow this up with a calibration of your parameter. Following this you can perform a learning cycle to get your golden image. All the documentation is available online on TI to complete this steps and heavy emphasis on using the "Quick Guide for bq34210-Q1".

Critical Parameter:
Design Capacity, Design Voltage, Charge Term Taper Current, Discharge (Dsg) Current Threshold, Charge (Chg) Current Threshold, Quit Current and Term Voltage

GPCCHEM calculator:
https://www.ti.com/lit/an/slva725a/slva725a.pdf?ts=1741788252721&ref_url=https%253A%252F%252Fwww.ti.com%252Ftool%252FGPCCHEM
https://www.ti.com/tool/GPCCHEM

Quick Guide for bq34210-Q1:
https://www.ti.com/lit/ug/sluubr7/sluubr7.pdf?ts=1741788333580&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FBQ34210-Q1

Achieving the successful learning cycle:
https://www.ti.com/lit/an/slua903/slua903.pdf?ts=1741788480031&ref_url=https%253A%252F%252Fwww.ti.com%252Fsitesearch%252Fen-us%252Fdocs%252Funiversalsearch.tsp%253FlangPref%253Den-US%2526nr%253D77%2526searchTerm%253Dhow+to+perform+a+learning+cycle+bqstudio

Thank you,
Alan
