TPS62442-Q1: About comp setting 1/2 and output capacitance

Leo Ma

Expert 3716 points

Part Number: TPS62442-Q1

Tool/software:

Hi Expert,

Hope you have a good day!

About TPS62442-Q1,

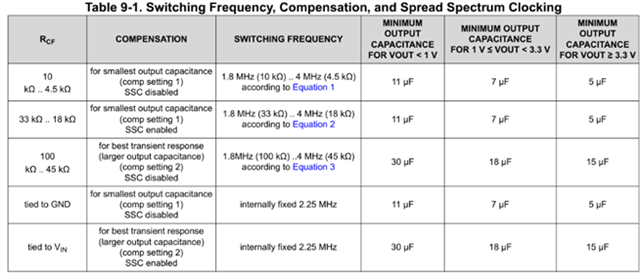

Why the comp setting 1’s output capacitance is smaller than comp setting 2?

What is the internal circuit difference between comp setting 1 and 2?

Does comp setting 2 improve transient response?

Thanks!

Best Wishes,

Leo Ma

6 months ago

0 Farheen 6 months ago

TI__Mastermind 20990 points

Hello Leo,

Comp setting 2 has higher bandwith of control loop so it can accomodate higher output capacitance. Yes comp 2 helps to imrove the transient response.

Thanks,

Farheen

0 Leo Ma 6 months ago in reply to Farheen

TI__Expert 3716 points

Hi Farheen,

What are the benefits of "higher bandwith"? Does it have relationship with Fsw?

I see the comp setting 1 and 2's max Fsw are same 4MHz.

Thanks!

Best Wishes,

Leo Ma

+1 Farheen 6 months ago in reply to Leo Ma

TI__Mastermind 20990 points

Hello Leo Ma,

Bandiwdth is more related to crossover frequency, and if it is higher, then it can accomodate more capacitance at output. That is why it improves transient performance also. But it does not have any impact on switching frequency.

Bandiwdth is defined as "frequency range where system effectively responds to changes"

Thanks,

Farheen

0 Leo Ma 6 months ago in reply to Farheen

TI__Expert 3716 points

Thanks Farheen!
