LMZ31710: INH / UVLO Pin Feature

SANTANU KUMAR SINHA

Part Number: LMZ31710
Other Parts Discussed in Thread: LMZ31704, , TPS54020

Tool/software:

Hi TI Team,

Can I use both Inhibit function using a enable digital logic and UVLO feature using potential divider in LMZ31710 / LMZ31704 Power ICs ?

Thanks & Regards,

Santanu Kumar Sinha

6 months ago

0 Calan Elaya 6 months ago

TI__Genius 11435 points

Hello,

A response will be posted this week.

Thanks,

Calan

0 Savith Kumar Rayakanti 6 months ago in reply to Calan Elaya

TI__Expert 5980 points

Hi Santanu,

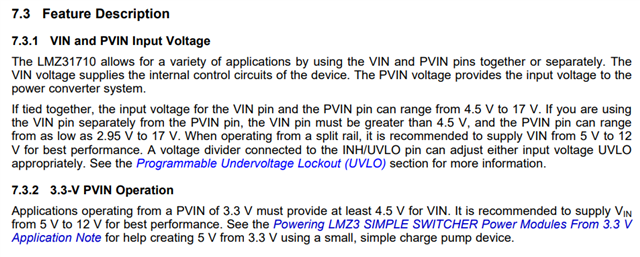

LMZ31710 internally uses TPS54020 IC , INH/UVLO pin is EN pin of TPS54020 internally

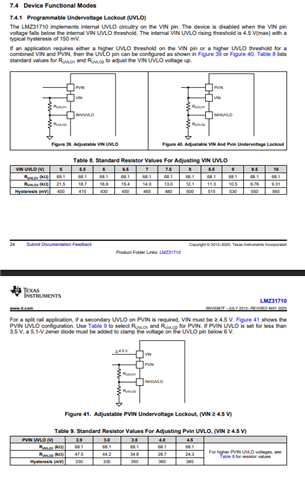

Both the datasheets mentions to use resistor divider for UVLO

Thank you
Savith

0 SANTANU KUMAR SINHA 6 months ago in reply to Savith Kumar Rayakanti

Prodigy 175 points

Hi Savith,

Thank you for the above Information.

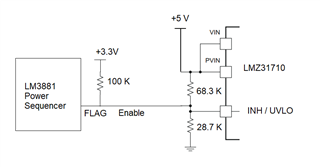

Please review below scheme for driving INH / UVLO of LMZ31710 / LMZ31704.

Here both INH and UVLO features are being used. Can I use in this configuration ?

+1 Savith Kumar Rayakanti 6 months ago in reply to SANTANU KUMAR SINHA

TI__Expert 5980 points

Hi Santanu

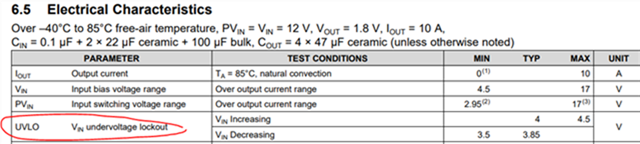

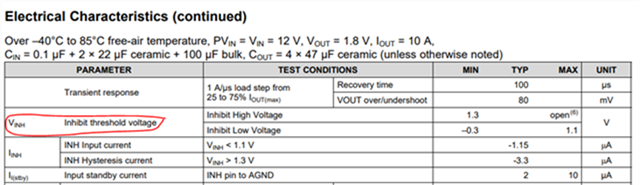

You can use an external signal to Enable the part, But LMZ31710 already has internal Vin UVLO and INH/UVLO rising falling thresholds as shown in the datasheet, as soon as Vin<=3.85V the part stops switching, I don't think having an resistor divider at these low vin 5V helps you, usually we use the Vin to INH resistor divider to increase the Vin UVLO threshold.
