BQ27427EVM: BQ27427 and BQ25600 schematic

Neil wei

Prodigy 10 points

Part Number: BQ27427EVM
Other Parts Discussed in Thread: BQ27427, BQ25600

Tool/software:

Please help review the attached Bq27427 and BQ25600 circuit.

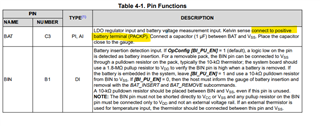

Is BQ27427's BAT pin connector to Battery's BAT+ pin ?

Is BQ27427's SRX pin connector to (Charge IC)Bq25600's BAT1~BAT3 pin ?

BQ27427 & BQ25600.pdf

6 months ago

0 Alan Frias 6 months ago

TI__Mastermind 26055 points

Hello Neil,

You do have the BAT pin connected correctly, since you have it connected to BAT+ pin. Also BQ27427's SRX pin is connected correctly too, but to clarified where is your load connection points are?

Thank you,
Alan

0 Neil wei 6 months ago in reply to Alan Frias

Prodigy 10 points

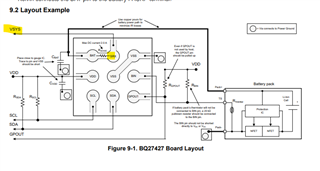

Reply as below schematic

System load is B225660’s VSYS
Is BQ27427's BAT pin connector to Battery’s VBAT pin?
Is BQ27427's SRX pin connector to BQ25600’s BAT1-BAT3 pin?

0 Alan Frias 6 months ago in reply to Neil wei

TI__Mastermind 26055 points

Hello Neil,

-This is a charger E2E question please reach out to them for clarification

-This is done correctly

-On the battery gauge end this is correct, but on the charger end I would ask for clarification to make sure that this would carry the load

Thank you,
Alan
