TPS61289EVM: VLOW spec and dimensions

Joaquin Real

Part Number: TPS61289EVM
Other Parts Discussed in Thread: TPS61289,

Tool/software:

Hello,

TPS61289 specifies some graphs with VLOW voltages up to 12 V in Boost mode. TPS61289EVM specifies that VLOW can only be up to 5 V.

Given I want a VHIGH of 12 - 15 V, is there an issue on using TPS61289EVM with VLOW of 5 - 8.4 V?

Also, can you send the dimensions of the TPS61289EVM?

Thanks.

0 Travis Wang 5 months ago

Hi Joaquin,

The EVM voltage divider ratio on VLOW does not support >5V. The IC does support up to 12V. You can change the divider to achieve up to 8.4V.

Board dimension is 3500x3800 mil

Best Regards,

Travis

0 Joaquin Real 5 months ago in reply to Travis Wang

Hello,

Can you please clarify what you mean by the voltage divider at VLOW? What should I modify so the EVM supports 8.4 V at the input of VLOW.

Thanks.

0 Travis Wang 5 months ago in reply to Joaquin Real

Hi Joaquin,

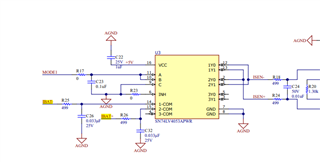

The EVM cannot be changed to support 8.4V by mere changing the divider. This switch is powered by 5V rail so it cannot support 8.4V input.

Best Regards,

Travis
