TPS7B63-Q1: schematic review

Hi team,

Could you please give some suggestions? Thanks.

Regards,

Ivy

Hi Ivy,

Could you please include a scope shot that includes input and output voltage, enable voltage, and load current?

Could you also please zoom into the overshoot point on the scope shot?

Best,

Hannah

Hi Hannah,

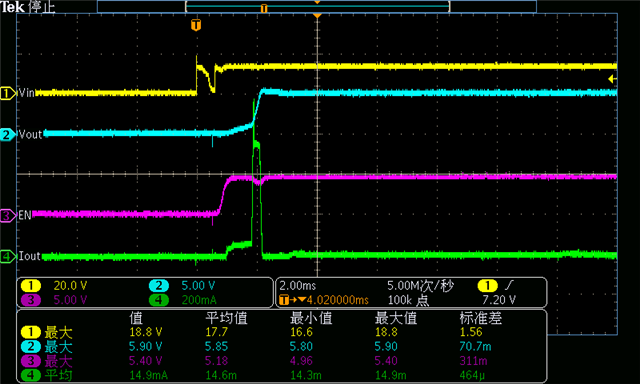

Please see the test waveform, thanks!

Regards,

Ivy

Hi Ivy,

It seems like you have some sort of Vin ripple. Could you please ensure that your input supply is stable?

Please see if adding additional output capacitance may help with this situation.

Best,

Hannah

Hi Hannah,

The customer's VIN is a switched power output, so there is a jitter.

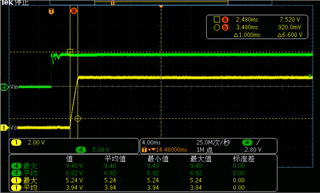

The current situation is the customer on the same PCB to replace the P2P TMP1220, the test waveform is shown below, there is no overshoot point.

The customer has tried to adjust the output capacitance. However, there has been no significant improvement.

Could you share more suggestions about optimizing the issue? This issue may affect our DWIN in this case. many thanks.

Regards,

Ivy

Have they tried adjusting the input capacitance as well as reducing parasitics in their circuit where it may be present, resistance, capacitance and inductance?

Are they using a resistive or active load? If an active load, try a resistive?

Best,

Hannah

electronic/active load
