LM51772EVM-HP: How to use I2C to adjust current limit ?

user4871311

Part Number: LM51772EVM-HP

Tool/software:

I am using LM51772EVM-HP to debug the constant current function and need to adjust the current through I2C. However, I found that the current is always limited to 5.4A in the constant current state. I tried to modify the internal ILIM_THRESHOLD register to adjust the current limit, but the current value did not change. Can you tell me what I should do?

6 months ago

+1 Hassan Jamal 6 months ago

TI__Expert 4090 points

Hi User,

Thanks for using the E2E forum.

Are you using GUI to control the EVM via I2C?

https://dev.ti.com/gallery/view/GCBCC/LM51772_GUI/

Best Regards,

Hassan

0 user4871311 6 months ago

Prodigy 20 points

Yes, I use GUI to control the EVM via I2C. But the current value did not change. Can you tell me what I should do？

0 user4871311 6 months ago in reply to Hassan Jamal

Prodigy 20 points

Yes, I use GUI to control the EVM via I2C. But the current value did not change. Can you tell me what I should do？

0 Stefan Schauer 6 months ago

TI__Guru 58661 points

Hi Qinglang,

So you would like to set the current limit level via I2C - right? This means DAC operation of the average current limit

Please check JP10 to be removed - see EVM users guide for details.

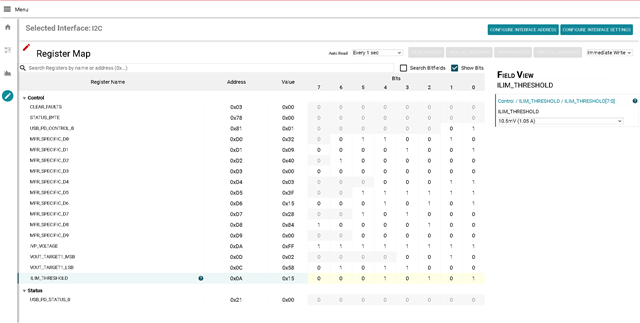

Next check the settings in the GUI to be set like this>

Best regards,

Stefan

0 user4871311 6 months ago in reply to Stefan Schauer

Prodigy 20 points

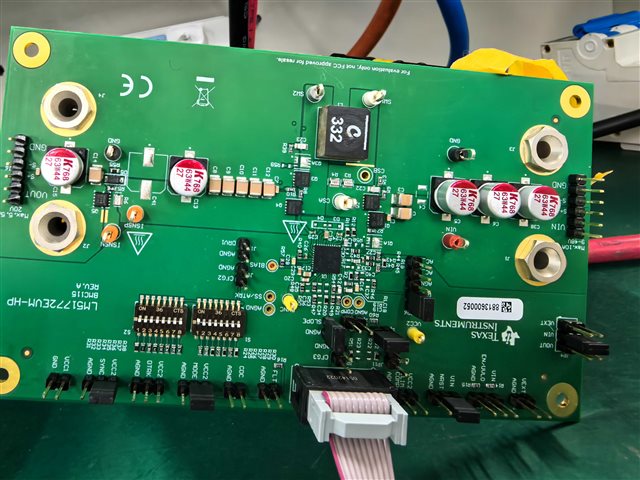

Yes, I tried to remove JP10, but EVM did not enter the current limiting state; I short-circuited JP10, EVM can enter CC state, but can not adjust the current through GUI
