BQ41Z90: Configuration of I/Os

Stephanie Sahm

Part Number: BQ41Z90

Tool/software:

Hello,

we are going to design a solution with the new bq41z90.

We have recognized that there are some chances in the PIN-functions between the several versions of the datasheets. Will there be any other changes in the nearer future? Is the version of the datasheet, the TRM and the firmware on your webpage the latest versions or are newer version available?

Another question is how the configuration of multifunction PINs (e.g. PIN20-PIN29 an PIN34-PIN44) can be done?

Thank you and best regards

Stephanie

5 months ago

0 Alan Frias 5 months ago

TI__Mastermind 26765 points

Hello Stephanie,

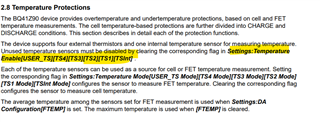

There is not any plans of updating the datasheet, TRM and teh firmware in the future and currently there is only on version of each documentation in the website as well. In terms configuration of the Pins you would need to do that within BQStuido and read the TRM to see how it is done, but I've attached the steps to turn on the thermistor below.

Thank you,
Alan

0 Stephanie Sahm 5 months ago in reply to Alan Frias

Prodigy 235 points

Dear Alan,

thank you very much for your response.

The measurement of temperatures is working. But where can we find more information about configuration of PIN 22 and 23 as DCHG output and DDSG output. Is anywhere a detailed description of the DCHG output and DDSG output function available?

Thank you for your help and best regards

Stephanie

0 Alan Frias 5 months ago in reply to Stephanie Sahm

TI__Mastermind 26765 points

Hello Stephanie,

I have received your question and will consult with the team, in the meantime please review the technical reference manual.

Thank you,
Alan

0 Diego 5 months ago in reply to Alan Frias

TI__Mastermind 26475 points

Hi Stephanie,

More information on DDSG and DCHG pins can be found in section 7.3.5.5 in the datasheet. BQ41Z90 Highly Integrated 3–16 Cell Battery Fuel Gauge with IT-DZT Algorithm and ECC Authentication datasheet (Rev. A)

Please let us konw if you have any questions.

Regards,

Diego
