TPS25730: I'd like to get 20V and 1.5A out of a USB C power source, but I only get 5V

Matthias Reichenbach

Part Number: TPS25730

Tool/software:

Hi,

I need 20V and max 1.5A out of a USB C source, but I get only 5V (with USB A to USB C cable) or something swinging between 3V and 5V (with an USB C to USB C cable)

I tried different sources but nothing worked out.

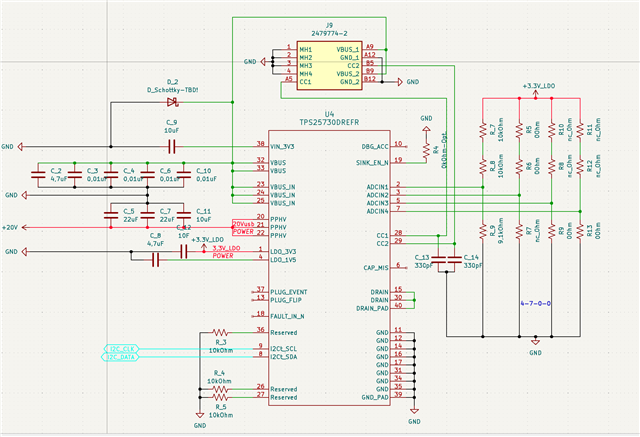

Thanks you for any help, I attach my KiCad desgin.

5 months ago

0 Christopher Lim1 5 months ago

TI__Mastermind 37855 points

Hi Matthias,

I'm not immediately sure what the issue may be, but do have some suggestions.

It may be hard, but could you try tying the Fault_in pin to LDO3V3 through a pullup resistor? This input pin needs to be biased appropriately otherwise the part will remain in a disconnected state and could prevent high voltage negotiation.

Thanks and Regards,

Chris

0 Matthias Reichenbach 5 months ago in reply to Christopher Lim1

Prodigy 20 points

Dear Chris, thank you for your idea, I will try it. Kind regards Matthias

0 Christopher Lim1 5 months ago in reply to Matthias Reichenbach

TI__Mastermind 37855 points

Yes, please let me know what you find.

If you have a PD analyzer, it may also be useful to see PD logs of the system, but I would try the resistor first.

Thanks and Regards,

Chris

0 Matthias Reichenbach 4 months ago in reply to Christopher Lim1

Prodigy 20 points

Thanks a lot, it was the Fault Pin, this pin was not explicit used in the reference design from the datasheet.
