CSD95472Q5MC: Questions about pspice model

Hello,

what signal is not correct? Is VSW responding to PWM?

Regards

Dear Team,

That is, VSW does not follow the PWM signal. VSW is only a few dozen mV. And it only fluctuates a little at the beginning of the transient simulation, and then approaches zero.

Many Thanks,

WANG Ruichen

Hello,

do you have all applied signals?

VIN = 12V

VDD = 5V

REFIN = 1.5V

BOOT Capacitor between pins 8 and 9

Regards

Dear Mastermind,

Yes, I have the right applied signals. But the output waveform still has problems.

Many Thanks,

WANG Ruichen

hello,

can you please show the schematic and waveform?

Regards

Dear Mastermind,

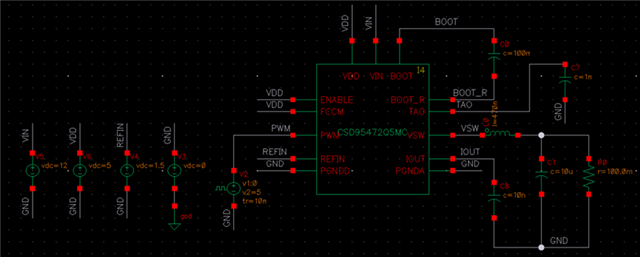

This is the schematic.

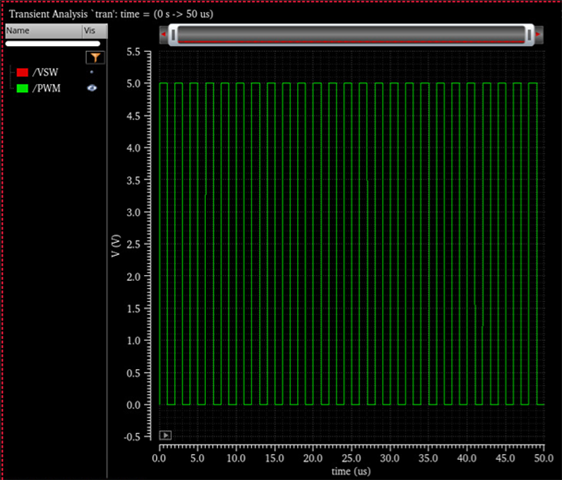

This is the PWM signal.

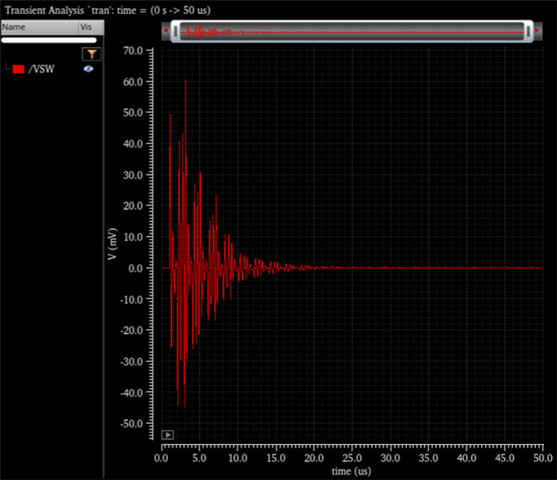

This is the waveform of the VSW

Many Thanks,

WANG Ruichen

Hello,

the setup looks good. it seems the issue is in Cadence Virtuoso.

Regards

Dear Mastermind,

So does that mean that this model cannot be simulated in Virtuoso. Or is there any other possible solution

Many Thanks,

WANG Ruichen

Hello,

I'm not familiar with cadence and do not have the software installed for trying it.

Regards
