BQ24075: Review Battery Charging IC Schematic

zunuran nasrullah

Part Number: BQ24075
Other Parts Discussed in Thread: BQ27441-G1

Tool/software:

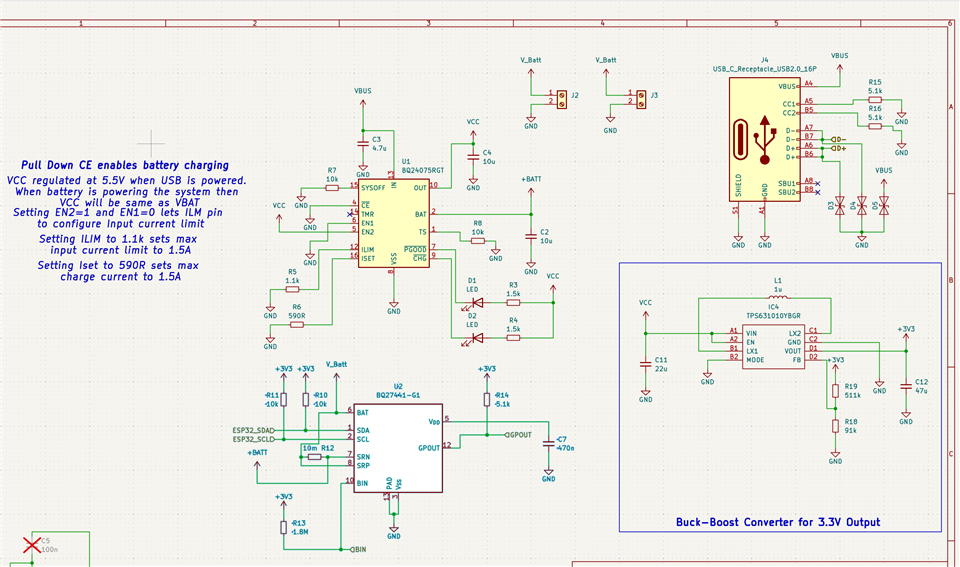

Please review the BQ24075 Schematic. I am using it with 2X 3.7V nominal 4.2V max 1500mAH Lithium-ion batteries in parallel configuration. I have used it with BQ27441-G1 Fuel cell. I am opening separate thread for fuel cell review aswell.

4 months ago

0 Wyatt Keller 4 months ago

TI__Guru** 105590 points

Hello,

We are looking into your questions and will get back to you by the end of today.

Sincerely,

Wyatt Keller

+1 Garrett Kreger 4 months ago in reply to Wyatt Keller

TI__Mastermind 31120 points

Hi Zunuran,

Please see my comments below.

-Let me point out VCC node connected to 'OUT' pin on BQ24075 should be connected to both pins 10 and 11. The schematic only shows pin 10.

-Similarly battery connection needs to be to both pins 2 and 3. The schematic only shows connection to pin 2.

Beyond the comments above I see no critical issues. All required components are present and selected resistors and capacitors are within allowable range for your intended operation.

Best Regards,

Garrett

+1 zunuran nasrullah 4 months ago in reply to Garrett Kreger

Prodigy 220 points

Thanks for your detailed review. Its actually confusion due to symbol. In PCB pin 10 and 11 are connected together and Pin 2 and 3 are connected together
