TPS7A52-Q1: LTspice model error (Unencypted and Pspice Model error)

Hridya TV

Part Number: TPS7A52-Q1
Other Parts Discussed in Thread: TINA-TI

Tool/software:

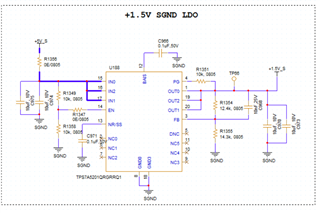

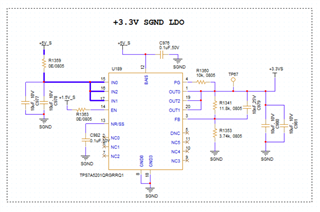

I tried to do the simulation with TPS7A52-Q1 in LT spice with the unencrypted and Encrypted Model. Both show error. Kindly share the model without error. The simulation was done based on the circuit attached below.

4 months ago

0 Alex Davis 4 months ago

TI__Genius 11900 points

Hi Hridya,

Unfortunately, due to license restrictions, we are unable to test models in LTSpice and do not directly support LTSpice as a simulation platform. We recommend simulating in TINA-TI or PSpice for TI as alternatives.

Best Regards,

Alex Davis

0 Hridya TV 4 months ago in reply to Alex Davis

Prodigy 185 points

Kindly provide the TINA model since pspice also the simulation error is displayed!

0 Alex Davis 3 months ago in reply to Hridya TV

TI__Genius 11900 points

Hi Hridya,

The issue appears to be a typo on line 34 of the model. That line should start with an asterisk to mark it as a comment, but that character was deleted. Editing that line to read:

* 3. Dropout measurement done with respect to VBIAS.

should fix the model error.

I'm also attaching a TINA file with the fixed, unencrypted model file for reference:

TINA-TI sim example

Best Regards,

Alex Davis
