USB-TO-GPIO2: USB-TO-GPIO2 could not communicate to BQ Wizard

Ben CHEONG

Part Number: USB-TO-GPIO2
Other Parts Discussed in Thread: BQSTUDIO, USB2ANY, EV2400, BQ78PL116, , BQWIZARD

Tool/software:

Hi TI Support Team,

Good day.

I have newly purchased a USP-TO-GPIO2 evaluation device from TI official website, however it fail to communicate with BQ wizard.

what should I proceed to solve the issue?

Thank you

Ben

4 months ago

0 Adrian 4 months ago

TI__Mastermind 37741 points

Hello Ben,

What version of windows are you using on your PC?

Regards,

Adrian

0 Ben CHEONG 4 months ago in reply to Adrian

Prodigy 120 points

Hi Adian,

Thanks for your prompt respond.

I have tried both windows 11 and windows 10, unfortunately both have failed to communicate with BQ wizard.

Thanks

Ben

0 Ben CHEONG 3 months ago in reply to Ben CHEONG

Prodigy 120 points

Hi Adrian,

It has been couple of days did not hear you.

any update for this matter?

Ben

0 Ben CHEONG 3 months ago in reply to Ben CHEONG

Prodigy 120 points

HI Adrian

It has been a week and I did not hear any respond.

any update?

regards,

Ben

0 Alan Frias 3 months ago in reply to Ben CHEONG

TI__Mastermind 24685 points

Hello Ben,

BQStudio doesn't use USB2ANY to interface with BQstuido, rather we use the EV2400 tool to interface with BQStudio.

Thank you,
Alan

0 Ben CHEONG 3 months ago in reply to Alan Frias

Prodigy 120 points

HI Alan,

Not BQ Studio, I am using BQ Wizard to connect BQ78PL116.

Please advice.

thanks

Ben

0 Alan Frias 3 months ago in reply to Ben CHEONG

TI__Mastermind 24685 points

Hello Ben,

Sorry for the confusion, but can you confirm that the hardware configuration was done correctly as per the EVM below. I've attached the document below.

bq78PL116EVM Evaluation Module:
https://www.ti.com/lit/ug/sluu474/sluu474.pdf?ts=1747162065241&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FBQ78PL116

Thank you,
Alan

0 Ben CHEONG 3 months ago in reply to Alan Frias

Prodigy 120 points

Hi Alan,

The hardware configuration is correct. I have another USB-to-GPIO is working. only the newly purchase one is not working.

Any firmware or setup is required for new USB-to-GPIO tools?

ben

0 Alan Frias 3 months ago in reply to Ben CHEONG

TI__Mastermind 24685 points

Hello Ben,

We don't support USB-to-GPIO, however I recommend asking another e2e for " USB-to-GPIO" tool since it appears that the issue is with the USB interface tool.

Thank you,
Alan

0 Ben CHEONG 3 months ago in reply to Alan Frias

Prodigy 120 points

In this case, how can I proceed return or replacement for my newly purchased tools?

0 Alan Frias 3 months ago in reply to Ben CHEONG

TI__Mastermind 24685 points

Hello Ben,

It depends with the distributor and I would recommend reaching out to there support team.

Thank you,
Alan

0 Ben CHEONG 3 months ago in reply to Alan Frias

Prodigy 120 points

Hi Alan,

how could I proceed to confirm whether is the unit I received is defective?

Ben

0 Alan Frias 3 months ago in reply to Ben CHEONG

TI__Mastermind 24685 points

Hello Ben,

I would recommend making another e2e for the USB-to-GPIO2 unit and see how to make it configurable with USB-to-GPIO unit. I am not responsible for this part and wouldn't know how to confirm if the unit is defective.

Thank you,
Alan

0 Britton Jones 3 months ago in reply to Alan Frias

TI__Expert 8436 points

Hi Alan,

There is no backwards compatibility between the USB-TO-GPIO2 and USB-TO-GPIO. The Fusion Digital Power Designer software had to be updated to support the detection of the USB-TO-GPIO2 adapter.

Ben needs to know which adapter is recommended for BQWizard. Has the BQWizard team used the USB-TO-GPIO2? If not, then you may need to look at updating the software to support USB-TO-GPIO2 or recommend him another adapter that your team has used

My team cannot guarantee the compatibility of USB-TO-GPIO2 with BQWizard because we have not used BQWizard

Here is the other thread for reference: (5) USB-TO-GPIO2: How to Configure USB-To-GPIO Tools - Interface forum - Interface - TI E2E support forums

Best regards,

Britton

0 Alan Frias 3 months ago in reply to Britton Jones

TI__Mastermind 24685 points

Hello Ben,

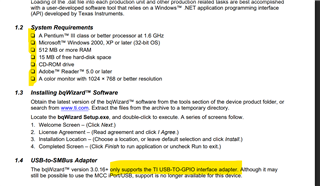

The BQWizard "only supports the TI USB-TO-GPIO interface adapter", if you can't automatically connect with BQWizards with USB-TO-GPIO2 than it is not backwards compatible. Please make sure that you are using the original USB-TO-GPIO and meet the other system requirements as well. I've attached the BQwizard documentation as well.

BQwizard:
https://www.ti.com/lit/ug/sluu336c/sluu336c.pdf?ts=1748013899413&ref_url=https%253A%252F%252Fwww.ti.com%252Ftool%252FBQWIZARD

Thank you,
Alan
