TPS7A15: TPS7A1510PDRVR

user6350528

Part Number: TPS7A15

Tool/software:

VCC_IN is 5V, and it outputs 0.9V with or without load at the end. It was tried to replace capacitors C286 and C287 with 10uF and C288 with 0.47uf. When the input voltage increased from 1.1 to 1.2V, the output was 0.9V. If the same circuit is replaced with a TPS7A1110 chip, it can output 1V. Could you please take a look at the reason? Thank you

3 months ago

0 Alex Davis 3 months ago

TI__Genius 12070 points

Hi user6350528,

What is the bias voltage on VCC_IN in your application?

Best Regards,

Alex Davis

0 user6350528 3 months ago in reply to Alex Davis

Expert 1530 points

0 Alex Davis 3 months ago in reply to user6350528

TI__Genius 12070 points

Hi user6350528,

What is the typical load current in your application?

0 user6350528 3 months ago in reply to Alex Davis

Expert 1530 points

The typical load current is approximately 250mA. At the same time, the load was also disconnected, but the output was still 0.9V

0 Alex Davis 3 months ago in reply to user6350528

TI__Genius 12070 points

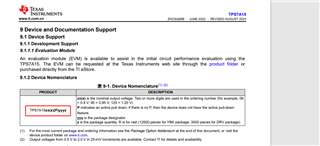

To rule out device damage, is this reproducible across multiple TPS7A1510 devices?

No load rules out an overcurrent issue, and the 1.1V Vin is enough to eliminate Vin dropout as a cause. If Vbias is 5V, that should be plenty of headroom to avoid dropout from the bias supply.

Can you measure voltages at the input and bias terminals as well?

Best Regards,

Alex Davis
