LM317: Could you please confirm which pin configuration is correct?

TAE JIN KO

Prodigy 60 points

Part Number: LM317

Tool/software:

The pin information in the datasheet appears to be inconsistent.

Could you please clarify which one is correct?

4 months ago

+1 Daniel Esparza 4 months ago

TI__Expert 4065 points

Hello Tae,

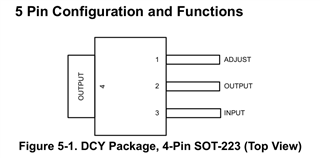

Thanks for your message. It looks like the pinout from figure 5-1 is actually the bottom view and needs to be corrected. The pin location from figures 8-23 & 8-24 show the correct pinout from the top view.

Best regards,

Daniel Esparza

0 TAE JIN KO 4 months ago in reply to Daniel Esparza

Prodigy 60 points

Thank you for your help.
Best regards,
TJ

0 Daniel Esparza 4 months ago in reply to TAE JIN KO

TI__Expert 4065 points

You are welcome, Tae.

Best regards,

Daniel Esparza
