Hi,

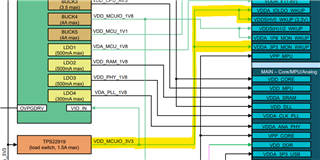

In the user guide for TPS65941319-Q1, VDD_MCUIO_3V3 is shown to be the power rail for the VDDSHV0_WKUP supply group in Figure 3-1:

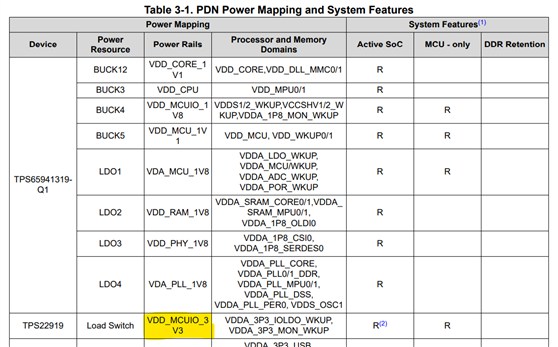

However, the VDDSHV0_WKUP domain is not listed next to the VDD_MCUIO_3V3 power rail in Table 3-1:
I assume this is just a typo, but wanted to confirm.
Thank you
Hello Michael,
Thank you again for going through the User's Guide to catch that omission.
You are correct, the load switch is tied to same nets as VDDA_3P3_IOLDO_WKUP & VDDA_3P3_MON_WKUP.
This is permissible due to the datasheet section outlining the VDDSHV* configurations for single 1V8, 3V3, or split 1V8/3V3 configurations on the pins.
BR,
Nicholas McNamara
