LMR14020-Q1: Datasheet misprint on package size

Sho Ikeno

Prodigy 410 points

Part Number: LMR14020-Q1
Other Parts Discussed in Thread: LMR14030-Q1

Tool/software:

there seems to be a misprint for the package size on the fist page. could you provide fixed datasheet?

regards,

Ikeno

3 months ago

0 ARPITA NATH 3 months ago

TI__Expert 6512 points

Hi lkeno,

The device is available for two different packages DDA (8 pin) and DPR (10 pin) having different dimensions. Could you please elaborate your query ?

Regards

Arpita

0 Sho Ikeno 3 months ago in reply to ARPITA NATH

TI__Prodigy 410 points

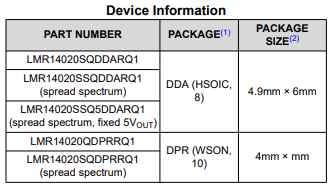

DPR (10 pin) size has "4mm x mm" on the table, this should be "4mm x 4mm"?

0 ARPITA NATH 3 months ago in reply to Sho Ikeno

TI__Expert 6512 points

Hi Sho,

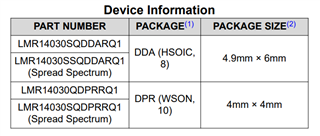

Thanks for pointing out. I have noticed now. Yes it should be 4mm*4mm. We can confirm with LMR14030-Q1 datasheet. I will connect with the concerned team for the correction.

Thanks

Arpita

0 Sho Ikeno 3 months ago in reply to ARPITA NATH

TI__Prodigy 410 points

thank you for your reply. customer needs this for document, when can we expect to have to revised version?

0 ARPITA NATH 3 months ago in reply to Sho Ikeno

TI__Expert 6512 points

You can refer to LMR14030-Q1 datasheet for confirmation. Both have same package DPR (WSON,10)

I will check internally about the timeline to get revised version.
