TPS25751: WQFN EXAMPLE BOARD LAYOUT

Che Wen Yeh

Part Number: TPS25751

Tool/software:

Hi,

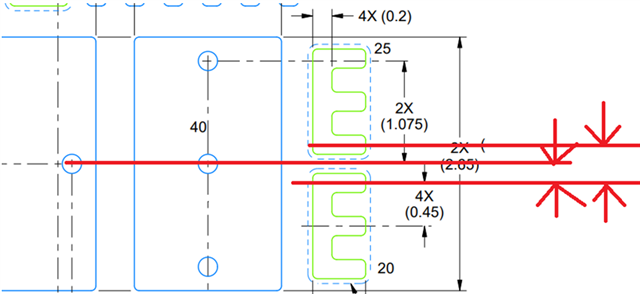

Please help confirm the distance marked in red on the TPS25751 WQFN example board layout diagram, thanks.

0 Aya Khedr 3 months ago

Hi,

Thank you for reaching out!

I will look into this and get back to you with the measurements by Thursday.

Best Regards,

Aya Khedr

+1 Aya Khedr 3 months ago in reply to Aya Khedr

Hi,

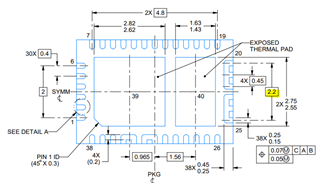

The measurements highlighted above can be referenced from the package outline:

Calculation: 2.2 - (0.45x4) = 0.4mm pitch (0.2mm from center).

Best Regards,

Aya Khedr
