TPS650864: Schematic Review

?? ?

Prodigy 130 points

Part Number: TPS650864

Tool/software:

Hello，

coulud you please help review the PMIC schematic ？ thanks a lot！

this pmic is designed to supply 1EG MPSOC0574.PMIC_SCH.pdf

3 months ago

0 Sarah Lao 3 months ago

TI__Genius 10047 points

Hello,

Thank you for reaching out on E2E and sharing your schematic.
Please be aware that the typical turnaround time for schematic reviews is ~1 week.

To help speed along this process, please look through and fill out the schematic checklist here.
I'll try to get back to you with my feedback and comments as soon as possible. Thanks!

Best Regards,
Sarah

0 ?? ? 3 months ago in reply to Sarah Lao

Prodigy 130 points

hello, may I have the review result this week, thanks a lot!

0 Sarah Lao 3 months ago in reply to ?? ?

TI__Genius 10047 points

Hello,

Please see the following comments regarding the schematic:

FBVOUT1 appears to be connected to some resistor divider at the Buck1 output.
FBVOUT1 pin should be connected to the positive terminal of the BUCK1 output capacitors.
Pullup resistor on GPO3 (PS_POR_B) is typically recommended to be 100kOhm
Else, all other connections and values are fine.

Best Regards,
Sarah

0 ?? ? 3 months ago in reply to Sarah Lao

Prodigy 130 points

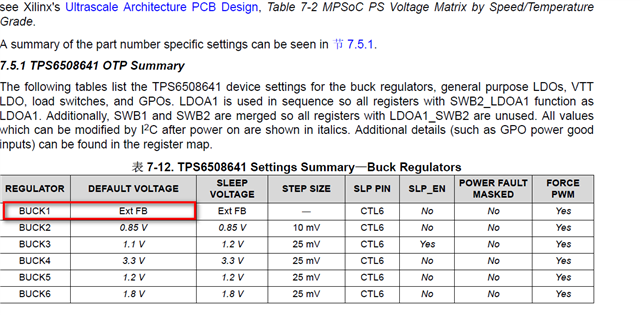

Hi thank you for your reply， buck1 use EXTFB, I think it‘s OK

0 Sarah Lao 3 months ago in reply to ?? ?

TI__Genius 10047 points

HI,

Yes, thank you for pointing this out. With EXT FB, this is ok.

Best Regards,

Sarah
