TPS53647: TPS53647＆CSD95372 simulation model

Masafumi Tanaka

Prodigy 30 points

Part Number: TPS53647
Other Parts Discussed in Thread: CSD95377Q4M, CSD95372BQ5M

Tool/software:

Hi, TI support member

I want to simulate TPS53647 and CSD95372 with SIMPLIS.

But I could only find models for Pspice on TI's website.

Can I use this to SIMPLIS simulation?

Best, regards.

3 months ago

0 yihe 3 months ago

TI__Guru 66230 points

Please contact your local TI support team and we can provide SIMPLIS model

Regards

Yihe

0 Masafumi Tanaka 3 months ago in reply to yihe

Prodigy 30 points

Hi, Yihe

Thank you for youre reply.　I got it.

Let me ask an additional question.

Can I control CSD95377Q4M with TPS53647?

If so, how should I handle the CSP and TSEN pins of the TPS53647?

Best regards.

0 yihe 3 months ago in reply to Masafumi Tanaka

TI__Guru 66230 points

Yes, it can

Please refer here.

https://www.ti.com/lit/pdf/sluuba9

Regards

Yihe

0 Masafumi Tanaka 3 months ago in reply to Masafumi Tanaka

Prodigy 30 points

Hi, Yihe

Thank you for reply.

I checked the reference design, but my questions remain unanswered.

CSD95377Q4 does not have TAO and IOUT.
This differs from the reference circuit(The difference between CSD95377Q4 and CSD95372BQ5M).

I've said it once, How should I handle the CSP and TSEN pins of the TPS53647?

Best regards.

0 yihe 3 months ago in reply to Masafumi Tanaka

TI__Guru 66230 points

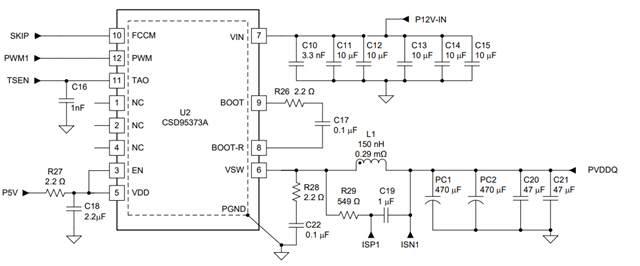

You can follow below to connect CSP(ISP1 and ISN1)

As for TSEN, you can have a fixed voltage on this pin to report constant temperature but obvious you won't have the temperature sensing feature from the power stage.

But why not jus use CSD95372 so that you do not need worry all these.

Regards

Yihe

0 Masafumi Tanaka 3 months ago in reply to yihe

Prodigy 30 points

Hi, Yihe

Thank you for reply.

>But why not jus use CSD95372 so that you do not need worry all these.
CSD95372 is too large to fit on the board I am designing.
Therefore, I am considering using CSD95377.

Best regards.
